Bi58Sn42 | Eutectic Pbfree Solder Spheres

LINQALLOY Bi58Sn42 Low-temperature eutectic solder spheres are lead-free Bismuth-Tin alloys that contain 58% Bismuth (Bi), 42% Tin (Sn) and are often written as 58Bi42Sn, Sn42Bi58, or 42Sn58Bi. Bi58Sn42 Solder Spheres are low-temperature, lead-free, eutectic solder spheres and are used by companies working with BGA, CSP, LBGA, PBGA and CBGA components who have made the transition to Lead-free (Pb-free) soldering.

Features:

• Lowest Cost Eutectic (138°C) Solder
• Low-Temperature Eutectic Solder compared to Tin-Silver
• Compatible with many Flux Types
• Lead-free

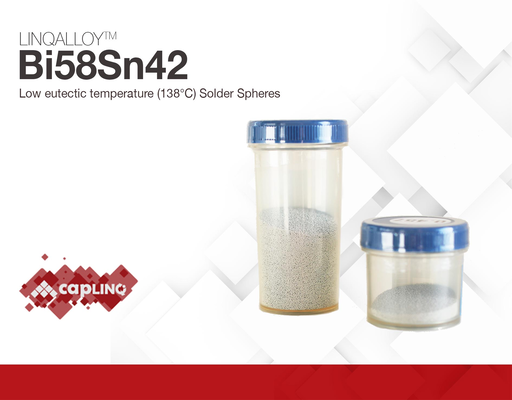

Each jar has a clear label on the lid specifying the solder ball diameter as well as a label on the front identifying the alloy type, the quantity of spheres in the jar, the date of manufacture, and the product lot (or batch) number. This batch number is also tied to a certificate of conformance that is provided with the solder spheres and ensures the Bi58Sn42 solder spheres meet the following quality criteria:

• Tin (Sn): 42%
• Bismuth (Bi): 58%
• Eutectic Temperature: 138°C
• Melting Temperature (Solidus): 138°C
• Melting Temperature (Liquidus): 138°C
• Sphericity: Within 1.5%

Diameter Tolerance

• 0.1mm - 0.25mm (100µm - 250µm) : ± 0.0050mm (± 5µm)
• 0.3mm - 0.45mm (300µm - 450µm) : ± 0.010mm (± 10µm)
• 0.5mm - 0.89mm (500µm - 890µm) :  ± 0.020mm ( ± 20µm)
