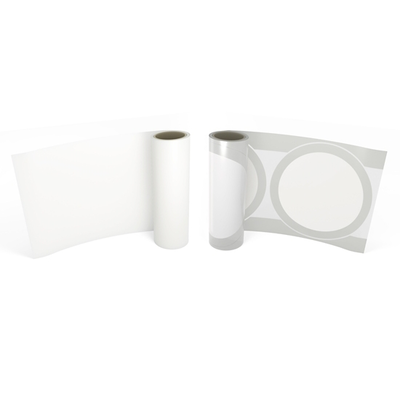

LOCTITE ABLESTIK CDF 815P
Harmonization Code : 7115.90.00.00 | Other articles of precious metal or of metal clad with precious metal : Other
Main features
- Electrically conductive
- Thermally conductive
- QFN, SOIC, SO
Product Description
LOCTITE ABLESTIK CDF 815P highly filled, conductive die attach adhesive is designed to provide high thermal and electrical conductivity in the attachment of integrated circuits and components onto metallic leadframes. This adhesive exhibits strong adhesion to various wafer metallizations and leadframe finishes. It can be used in a variety of die sizes ranging from 0.2mm x 0.2mm to 4mm x 4mm.
LOCTITE ABLESTIK CDF 815P exhibits high MSL reliability and excellent in package thermal and electrical resistance. It is typically used for die attach in QFN, SOIC and SO packages.
Cure Schedule
- 30 minute ramp from 25°C to 200°C, hold 60 minutes at 200°C
- 30 minute ramp from 25°C to 175°C, hold 60 minutes at 175°C
CDF815P
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 20 days
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- LOCTITE ABLESTIK CDF 800-EN
- 1793244_MSDS_UT_GB_EN
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Additional Information
CDF 800P - Die attach film property comparison
