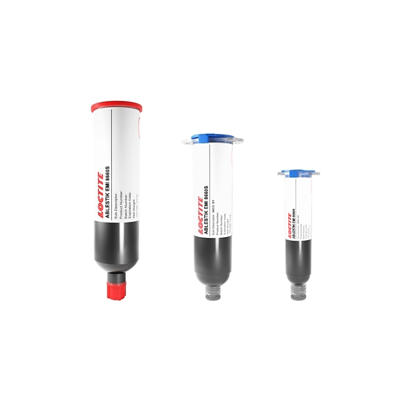

LOCTITE ABLESTIK EMI 8660S
Harmonization Code : 32159090 | Printing ink, writing or drawing ink, and other inks, whether or not concentrated or solid, specifically for those classified as other within that category
Main features
- Conformal EMI shielding
- Excellent adhesion on EMC, Au, Ag
- Spray, Print, Dispense
Product Description
LOCTITE ABLESTIK EMI 8660S is an electrically conductive adhesive designed to achieve robust electromagnetic interference (EMI) shielding performance with extremely thin coating thickness at a single micrometer level for package level shielding applications.
The material has robust adhesion to mold compound, epoxy, copper, gold and silver surfaces. When spray-coated, this material can be atomized to highly fine droplets for excellent uniformity at low to high coating thicknesses which can be controlled by equipment parameters.
LOCTITE ABLESTIK EMI 8660S is a sprayable, printable or dispensable silver sintering coating that exhibits high thermal and electrical conductivity. With good workability and a long work life, this material is typically used for RF, Wireless components, memories, sensors and other sensitive device applications.
Cure Schedule
- 60 minutes @ 175°C
EMI8660S
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- ABLESTIK EMI 8660S-EN
- 2343744_MSDS_UT_US_EN
- loctite-ablestik-emi-8660s-data-package
Technical Specifications
General Properties
Electrical Properties
Physical Properties
