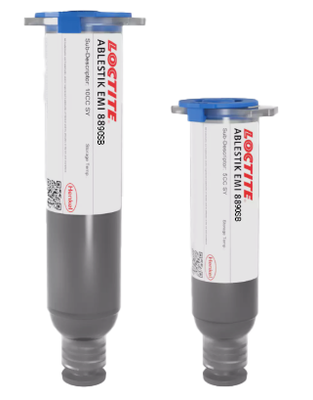

LOCTITE ABLESTIK EMI 8890SB
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Conformal EMI shielding
- Excellent adhesion on EMC
- Spray coating
Product Description
LOCTITE ABLESTIK EMI 8890SB is an electrically conductive adhesive designed to achieve robust electromagnetic interference (EMI) shielding performance with extremely thin coating thickness at a single micrometer level for package level shielding applications.
LOCTITE ABLESTIK EMI 8890SB has robust adhesion to mold compound, epoxy, copper, gold and silver surfaces. When spray-coated, this material can be atomized to highly fine droplets for excellent uniformity at low to high coating thicknesses which can be controlled by equipment parameters.
Cure Schedule
- 60 minutes @ 175°C
EMI8890SB
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 23 days
Shipping in 12 weeks
Shipping in 16 weeksPackaging
TDS, SDS & Technical Documents
- TDS LOCTITE ABLESTIK EMI 8890SB issue 11-20
Technical Specifications
General Properties
Electrical Properties
Physical Properties
Additional Information
Directions for Use
1. Thawed material should immediately be placed on dispense equipment for use.
2. If the adhesive is transferred to a final dispensing reservoir, care must be exercised to avoid entrapment of contaminations and/or air into the adhesive.
3. Adhesive must be completely used within the product's recommended work life.
4. No special surface treatment is needed for the substrate surface before applying this material.
5. Prior to material application, it is recommended that the substrate be handled with care to prevent any organic contamination and/or residue.
Storage
Store the product in the unopened container in a dry location. Storage information may be indicated on the product container labeling.
