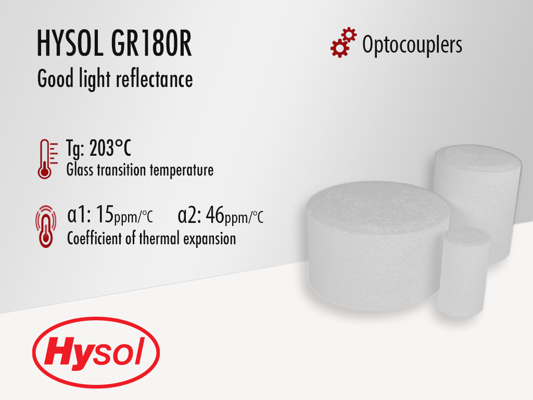

Hysol GR180R | White Epoxy Mold Compound
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- Reflective compound
- High reliability
- Great workability
Product Description
Hysol GR180R is a white, reflective epoxy molding compound used for optical applications. This fused silica filled (76 - 86%) product has been specifically designed to improve light reflectance and workability for optocouplers also knows as photo-couplers, optical isolators, or opto-isolators.
Hysol GR180R cures with heat and has a filler cut size of 75um that is ideal for transfer processes. It has been formulated to provide the best possible moldability and for a wide range of molding process parameters.
GR180R
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- Hysol GR180R
Technical Specifications
General Properties
Thermal Properties
Chemical Properties
Physical Properties
Curing Conditions
Additional Information
Storage
Store product in the unopened container in a dry location. Storage information may be indicated on the product container labeling.
Optimal Storage: 5°C or below, in closed containers. After removal from cold storage, the material MUST be allowed to come to room temperature, in the sealed container, to avoid moisture contamination. The suggested waiting time for a standard 15 kg carton box is 24 hours.
