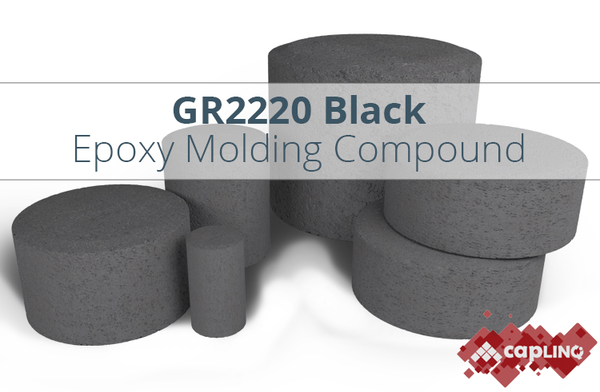

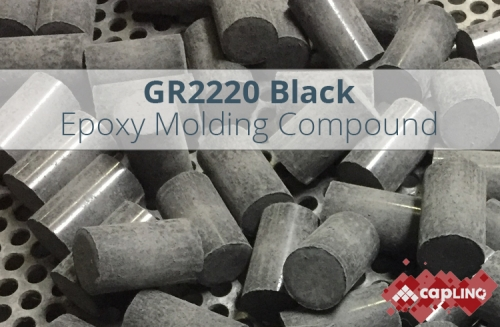

Hysol GR2220 | Black Epoxy Mold Compound
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Designed for MnO-based tantalum capacitors
- Lower cost of ownership
- High productivity, easily moldable
Product Description
Hysol GR2220 black epoxy molding compound delivers outstanding performance and ease of use. It is a "Green" environmentally friendly product with 75% fused silica filler that has high moldability and fast cycle time.
Hysol GR2220 is a heat curable epoxy, mainly used for MnO tantalum capacitors and can reach a VO flammability rating. It has been formulated to provide the best possible moldability and as wide molding latitude as possible.
GR2220
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- Hysol GR2220
- SDS Hysol_GR 2220_CN_EN_2023
- CAPLINQEpoxyMoldCompoundHandlingGuide1
- 1949060_GR 2220_EU_FR_1.0
- New_1949060_GR 2220_CN_EN_1.0
Technical Specifications
General Properties
Physical Properties
Thermal Properties
Curing Conditions
