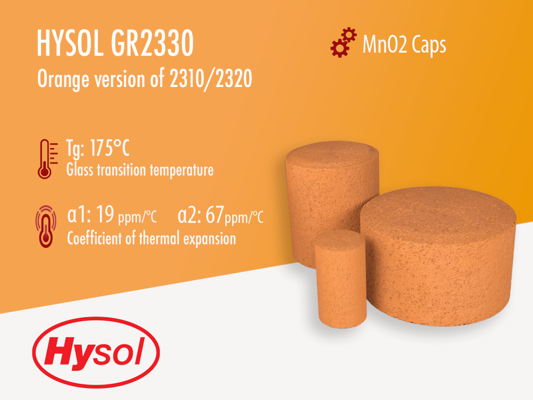

Hysol GR2330 | Orange Epoxy Mold Compound

Hysol GR2330 is an orange semiconductor epoxy molding compound designed for the encapsulation and protection of Manganese Oxide or MnO2 tantalum capacitors and other automotive packages. Once molded and post-mold cured, this product provides optimum protection and reliability for these capacitor devices.

Hysol GR2330 is a laser markable environmentally "green" product, that doesn't contain any halogens including bromine, antimony or phosphorus flame retardants. Hysol's MG-series epoxy molding compounds dominated the space for tantalum capacitors but used halogen-containing flame retardants. This next generation epoxy mold compound replaces these older generation products. This material is designed to achieve JEDEC Level 1 requirements at 260°C reflow temperature on Maganese Oxide MnO2 capacitors. Its fast cure time also ensures that it is compatible with the latest automold manufacturing equipment. Hysol GR2330 meets UL 94 V-0 Flammability at 1/4 inch (6.35mm) thickness.
