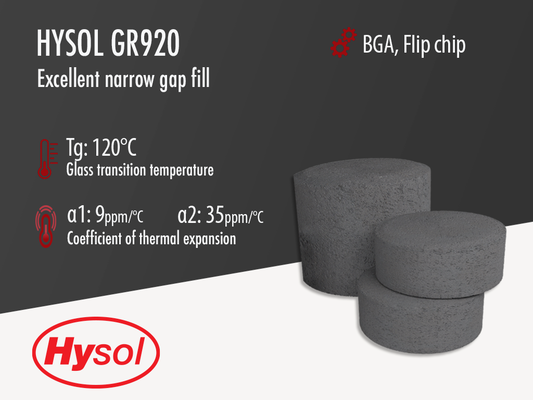

Hysol GR920 | Epoxy mold underfill
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- Molding underfill
- Excellent narrow gap fill
- Outstanding warpage control
Product Description
Hysol GR920 is a molding underfill product series. This product is not formulated with low-alpha silica but we could develop a low alpha version, suitable for memory chips, if needed.
Hysol GR920 is based on a MAR/LMW chemistry with an MF/MAR hardener and an MH flame retardant. Molding underfills are typically used for BGA, flip chip applications.
Features
- Good reliability performance on advanced packaging
- Excellent narrow space filling.
- Meet MSL3~MSL2/260C requirement.
- Outstanding warpage control(unit warpage<80 μm ).
- Meet UL94 V-0 flammability rate at 1/8 inch thickness.
Available Version
- Hysol GR920 H
- Hysol GR920 Q
- Hysol GR920 M
- Hysol GR920 L
- Hysol GR920 A
GR920
1. Select Product Form
2. Select Pellet Size
3. Select Pellet Weight
4. Select Package Size
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeks Shipping in 12 weeks Shipping in 12 weeksPackaging
Please select Product Form, Pellet Size, Pellet Weight and Package Size before adding your product to your cart.
TDS, SDS & Technical Documents
- Hysol Huawei EMC introduction (1)
- GR510 GR700 GR710 GR920 Product Introduction
- GR920 Series for FCCSP FCBGA FCLGA
Technical Specifications
General Properties
Density (g) Density (g)
2 g/cm3 Filler Content Filler Content
88,5 % Physical Properties
Spiral Flow @ 175°C Spiral Flow @ 175°C
102 cm Thermal Properties
Glass Transition Temperature (Tg) Glass Transition Temperature (Tg)
120 °C Thermal Conductivity Thermal Conductivity
0.9 W/m.K Mechanical Properties
Molded Shrinkage Molded Shrinkage
0,17 % Additional Information
GR920 Series Products Properties Comparison
| Property / Product | Unit | Hysol GR920 H | Hysol GR920 Q | Hysol GR920 M | Hysol GR920 L | Hysol GR920 A |
|---|---|---|---|---|---|---|
| UNCURED PROPERTIES | ||||||
| Packages | - | FCLGA | FCCSP/FCLGA | FCCSP | FCBGA | FCCSP |
| Filler cut | µm | 20 | 20 | 20 | 20 | 20 |
| Filler content | % | 84 | 85 | 88.5 | 88 | 87.5 |
| Filler Type | Spherical | Spherical | Spherical | Spherical | Spherical | |
| Hot Plate Gel time, @ 175°C | s | 38 | 39 | 37 | 34 | 46 |
| Spiral Flow @ 175°C | inch | 60 | 56 | 39 | 36 | 66 |
| Halogen-free (Green) | ✔ | ✔ | ✔ | ✔ | ✔ | |
| TYPICAL CURED PROPERTIES | ||||||
| Glass Transition Temperature | °C | 102 | 138 | 120 | 158 | 150 |
| Coefficient of Thermal Expansion (CTE) α1, TMA | ppm/°C | 13 | 12 | 10 | 9 | 9 |
| Coefficient of Thermal Expansion (CTE) α2, TMA | ppm/°C | 45 | 45 | 35 | 33 | 34 |
| Flexural Strength @25°C | MPa | 125 | 146 | 120 | 154 | 138 |
| Flexural Modulus @25°C | MPa | 13500 | 15500 | 19500 | 17800 | 21000 |
| Water Absorption, 24hr PCT | % | 0.4 | 0.35 | 0.3 | 0.3 | 0.38 |
| Mold Shrinkage after PMC | % | 0.36 | 0.26 | 0.13 | 0.20 | 0.19 |
| Specific Gravity | - | 1.93 | 1.96 | 1.99 | 1.99 | 1.98 |
| Cl Content | ppm | 7 | 7 | 8 | 7 | 9 |
| pH | - | 4.5 | 5.1 | 6.5 | 6.1 | 6.3 |
| Moisture Sensitivity Level | - | 2 | 3 | 3 | 3 | 3 |
| Feature | - |
Good Flowability Low Modulus |
Good Flowability Low Modulus Medium Tg |
Low Modulus Low Shrinkage Low CTE |
High Tg Low Shrinkage Low CTE |
Good Flowability High Tg Low Shrinkage Low CTE |
Beta Site Performance in HT**
| Property / Product | Unit | Commercial | Hysol GR910 L20 |
|---|---|---|---|
| UNCURED PROPERTIES | |||
| Epoxy Type | - | MAR/MF | |
| Hardener Type | - | MAR/MF | |
| Filler cut | µm | 20 | 20 |
| Filler content | % | 88 | 88 |
| Hot Plate Gel time, @ 175°C | s | 30 | 34 |
| Spiral Flow @ 175°C | cm | 99 | 91 |
| TYPICAL CURED PROPERTIES | |||
| Glass Transition Temperature, TMA | °C | 142 | 158 |
| Glass Transition Temperature, DMA | °C | 150 | 156 |
| Coefficient of Thermal Expansion (CTE) α1, TMA | ppm/°C | 9 | 9 |
| Coefficient of Thermal Expansion (CTE) α2, TMA | ppm/°C | 37 | 33 |
| Flexural Strength @25°C | MPa | 175 | 154 |
| Flexural Modulus @25°C | MPa | 19500 | 17800 |
| Storage Modulus by DMA @25°C | Mpa | 25000 | 25914 |
| Storage Modulus by DMA @175°C | Mpa | 3000 | 2119 |
| Storage Modulus by DMA @260°C | Mpa | 1200 | 1203 |
| Water Absorption, 24hr PCT | % | 0.38 | 0.37 |
| Mold Shrinkage after PMC | % | 0.18 | 0.20 |
| Hardness | Shore D | 83 | 81 |
| Package | Mold Cap | Strip Size | Package Size | Die Size | Bump Height |
|---|---|---|---|---|---|
| FCCSP | 0.4 mm | 240.5 * 95 * 0.22 mm | 5.4 * 5.4 mm | 3.3 * 2.8 * 0.15 mm | 65 µm |
| Item | Hysol GR910 L20 |
|---|---|
| Appearance |  |
| C-Scan |  |
| T-Scan |  |
| Bump-Scan |  |
| Warpage |
Short Side 2.07 mm Long Side 2.11 mm |
| Marking | OK |
| Test Item | Qualification Test Condition | Test Results | Test Criterion | SAT |
|---|---|---|---|---|
| Before Test | / | Pass | NA |  |
| Pre-conditioning |
Moisture Soak: 30°C/60%RH, 192 hours Reflow @ 260°C * 3times |
Pass | J-STD-020E |  |
| uHAST |
130°C, 85%RH 33.3 psia, unbiased 192 hours |
Pass | JESD22-A118B |  |
| TCB | -55°C~125°C, 1000 cycles | Pass | JESD22-A104E |  |
Beta Site Performance in JT**
| Property / Product | Unit | Commercial | Hysol GR910 L20 |
|---|---|---|---|
| UNCURED PROPERTIES | |||
| Epoxy Type | - | MAR/MF | |
| Hardener Type | - | MAR/MF | |
| Filler cut | µm | 20 | 20 |
| Filler content | % | 88 | 88 |
| Hot Plate Gel time, @ 175°C | s | 30 | 34 |
| Spiral Flow @ 175°C | cm | 99 | 91 |
| TYPICAL CURED PROPERTIES | |||
| Glass Transition Temperature, TMA | °C | 142 | 158 |
| Glass Transition Temperature, DMA | °C | 150 | 156 |
| Coefficient of Thermal Expansion (CTE) α1, TMA | ppm/°C | 9 | 9 |
| Coefficient of Thermal Expansion (CTE) α2, TMA | ppm/°C | 37 | 33 |
| Flexural Strength @25°C | MPa | 175 | 154 |
| Flexural Modulus @25°C | MPa | 19500 | 17800 |
| Storage Modulus by DMA @25°C | Mpa | 25000 | 25914 |
| Storage Modulus by DMA @175°C | Mpa | 3000 | 2119 |
| Storage Modulus by DMA @260°C | Mpa | 1200 | 1203 |
| Water Absorption, 24hr PCT | % | 0.38 | 0.37 |
| Mold Shrinkage after PMC | % | 0.18 | 0.20 |
| Hardness | Shore D | 83 | 81 |
| Package | Mold Cap | Strip Size | Package Size | Die Size | Bump Height |
|---|---|---|---|---|---|
| FCCSP | 0.365mm | 240 * 95 * 0.18 mm | 6.3 * 6.9 mm | 6.35 *5.57 *0.15 mm | 80 µm |
| Item | Hysol GR910 L20 |
|---|---|
| Appearance |  |
| C-Scan |  |
| T-Scan |  |
| Strip Warpage |
2~3 mm |
| Marking | OK |
| Test Item | Qualification Test Condition | Test Results | Test Criterion |
|---|---|---|---|
| Before Test | / | Pass | NA |
| Pre-conditioning |
Moisture Soak: 30°C/60%RH, 192 hours Reflow @ 260°C * 3times |
Pass | J-STD-020E |
| uHAST |
130°C, 85%RH 33.3 psia, unbiased 192 hours |
Pass | JESD22-A118B |
Beta Site Performance in HJ**
| Property / Product | Unit | Commercial | Hysol GR920 A1 |
|---|---|---|---|
| UNCURED PROPERTIES | |||
| Epoxy Type | - | BP | |
| Hardener Type | - | PN/MF | |
| Filler cut | µm | 20 | 20 |
| Filler content | % | 88 | 87.5 |
| Hot Plate Gel time, @ 175°C | s | 30 | 46 |
| Spiral Flow @ 175°C | cm | 99 | 167 |
| TYPICAL CURED PROPERTIES | |||
| Glass Transition Temperature, TMA | °C | 142 | 150 |
| Glass Transition Temperature, DMA | °C | 150 | 151 |
| Coefficient of Thermal Expansion (CTE) α1, TMA | ppm/°C | 9 | 9 |
| Coefficient of Thermal Expansion (CTE) α2, TMA | ppm/°C | 37 | 34 |
| Flexural Strength @25°C | MPa | 175 | 1138 |
| Flexural Modulus @25°C | MPa | 19500 | 21000 |
| Storage Modulus by DMA @25°C | Mpa | 25000 | 24000 |
| Storage Modulus by DMA @175°C | Mpa | 3000 | 2000 |
| Storage Modulus by DMA @260°C | Mpa | 1200 | 1100 |
| Water Absorption, 24hr PCT | % | 0.38 | 0.38 |
| Mold Shrinkage after PMC | % | 0.18 | 0.19 |
| Hardness | Shore D | 83 | 80 |
| Package | Mold Cap | Strip Size | Package Size | Die Size | Bump Height |
|---|---|---|---|---|---|
| FCCSP | 0.37 mm | 240 * 76.3 * 0.18 mm | 14 * 14 mm | 6 * 6* 0.12mm | 80 µm |
| Item | Hysol GR910 L20 |
|---|---|
| Appearance |  |
| C-Scan |  |
| T-Scan |  |
| Strip Warpage |
2 mm |
| Marking | OK |
| Test Item | Qualification Test Condition | Test Results | Test Criterion |
|---|---|---|---|
| Before Test | / | Pass | NA |
| Pre-conditioning |
Moisture Soak: 30°C/60%RH, 192 hours Reflow @ 260°C * 3times |
Pass | J-STD-020E |
| uHAST |
130°C, 85%RH 33.3 psia, unbiased 192 hours |
Pass | JESD22-A118B |
| TCB | -55°C~125°C, 1000 cycles | Pass | JESD22-A104E |
