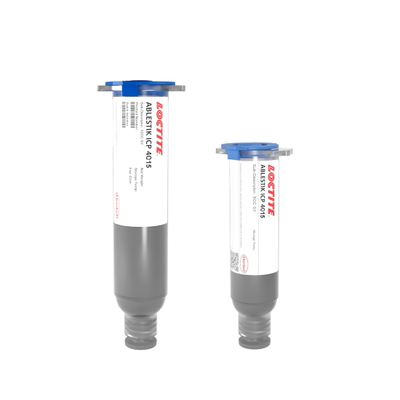

LOCTITE ABLESTIK ICP 4015
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- One component
- High flexibility
- Low temperature cure
Product Description
LOCTITE ABLESTIK ICP 4015 is a silicone based, electrically conductive adhesive. It is specially designed for applications where both high flexibility and excellent conductivity are required.
LOCTITE ABLESTIK ICP 4015 is engineered to maintain its flexibility and conductivity at elevated temperatures, up to 200ºC. This adhesive is also formulated to cure at temperatures as low as 80ºC. It is suitable for wearable electronics using flexible printed circuits requiring low temp (max 100ºC) cure.
Cure Schedule:
- 30 minutes @ 80°C
This is a Recommended schedule but it can vary per application. 60 minutes @ 80°C or 35 minutes @ 140°C will provide more consistent results.
ICP4015
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 50 days
Shipping in 12 weeks
Shipping in 35 daysPackaging
TDS, SDS & Technical Documents
- Loctite Ablestik ICP 4015
- Loctite Ablestik ICP 4015 SDS
Technical Specifications
General Properties
Electrical Properties
Mechanical Properties
Physical Properties
Additional Information
DMA Analysis
CTE is always the one above Tg as the Tg is always so low in these products that a decent measurement below that temperature is almost impossible with our machines.
ICP 4015 Low temperature cure adhesive- Comparison chart
