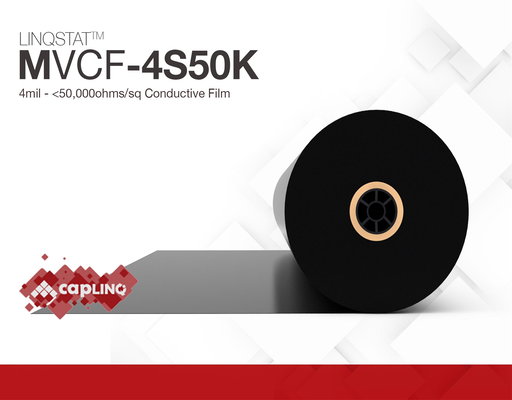

MVCF-4S50K | LINQSTAT 4mil - 50,000 Ω/sq Conductive Film

LINQSTAT MVCF-4S50K is a black, carbon-filled, electrically conductive polyethylene plastic film designed to provide both physical and static protection. Having a surface resistivity below 5 x 104 Ω/sq it offers medium-level static protection which means it effectively avoids accumulation of electric charge on itself and the products which it protects. Its easy-grounding nature makes it ideal for packaging where electrostatic contamination is a problem. Please keep in mind that 50,000 ohms/sq is not an absolute value by any means. These are not meant to be highly controlled sheets as reflected on their price range. The guaranteed property is that it is going to be around 50,000ohms/sq with a ±10-20k tolerance.

MVCF-4S50K is useful in applications where the key is to balance cost versus performance. As a medium-level conductive plastic, the carbon-loading is such that it is low-enough to be cost effective, while being high enough to meet the electrical requirements of military specification MIL-PRF-81705D Type II and MIL-P-82646A. Please note that  Linqstat  MVCF-4S50K is surface conductive and the volume conductivity needs to be retested.

MVCF-4S50K plastic film and its conductivity are unaffected by humidity and age. The film is heat sealable, flexible and offers exceptional abrasion resistance. To add to that, it exhibits good thermal stability and has outstanding chemical resistance. It is available in 4 mil (0.1mm). Other thicknesses can be available upon request. Additionally, the film has been proven to be highly UV resistant, absorbing UV radiation at 365 nm up to 100%.
