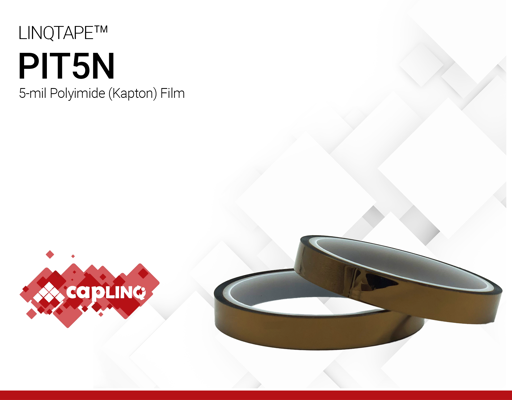

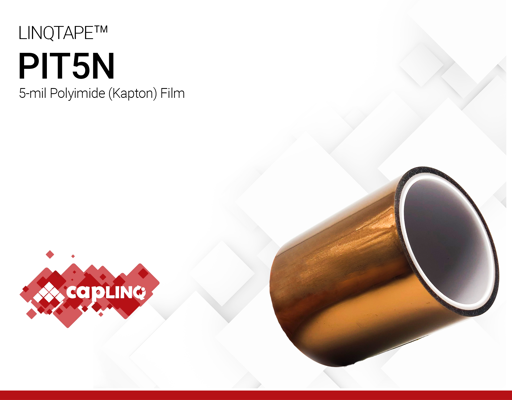

PIT5N | 5-mil Polyimide (Kapton) Film
Harmonization Code : 3919.90.80.99 | Polyacrylic plates / sheets / film / tape / strip, self-adhesive, in rolls
Main features
- 5 mil polyimide film
- No adhesive
- >17,500V breakdown voltage
Product Description
LINQTAPE™ PIT5N-Series is a high performance, flexible, hightemperature resistant polyimide film for many high temperature applications. Polyimide is preferred over polyester for many high temperature applications. These applications include but are not limited to semiconductor, smartcard, electronic, automotive and general manufacturing industries.
LINQTAPE™ PIT5N-Series provides an excellent balance of electrical, mechanical, thermal, and chemical properties over a wide range of temperatures. It can be used in applications that may see temperatures up to 400°C (752°F).
LINQTAPE™ PIT5N-Series comes in 33 meter (36 yard) length rolls of varying widths. The base polyimide film (backing) thickness is 5-mil (127 ± 2µm) thick. Polyimide films are available in a range of thicknesses, starting from 0.5 mil (12.7µm) thickness and up. Custom thicknesses are available upon request.
PIT5N-Series
Shipping in 2 weeks
Shipping in 2 weeks
Shipping in 2 weeksPackaging
TDS, SDS & Technical Documents
- CAPLINQ PIT-N RoHS
- LINQTAPE PIT5N TDS
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Other Properties
Recently viewed products

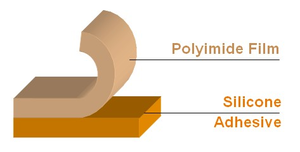

PIT1S | 1-mil Polyimide (Kapton) Tape with Silicone Adhesive
