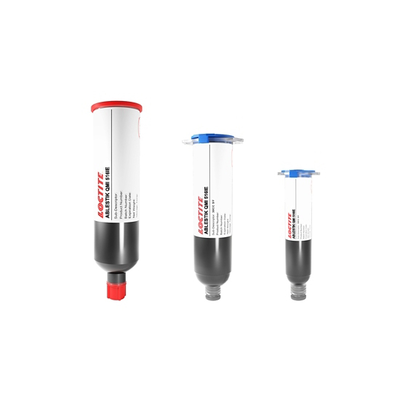

LOCTITE ABLESTIK QMI 516IE
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Electrically conductive
- Hydrophobic
- Snap cure
Product Description
LOCTITE ABLESTIK QMI516IE electrically conductive adhesive is designed for die attach applications. It is a hydrophobic Bismaleimide (BMI) hybrid that is stable at high temperatures and creates a void free bondline.
LOCTITE ABLESTIK QMI516IE is a Snap curable adhesive, designed for high throughput bonding applications. It can cure fast in low temperatures. This adhesive, typically used for heat sensitive devices, cures in low temperatures and exhibits excellent adhesive strength to a variety of substrates.
Snap Cure
- 60 seconds @ 90°C
Oven Cure
- 90 minutes @ 60°C
QMI516IE
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- LOCTITE ABLESTIK QMI516IE
- LOCTITE ABLESTIK QMI 516IE
Technical Specifications
General Properties
Thermal Properties
Physical Properties
Additional Information
What is going on with Bismaleimide based materials and bleeding?
Bleeding is a known “side effect” of QMI products based on BisMaleImide (BMI) resin. The relatively low BMI resin viscosity allows higher filler loading and this makes this resin popular for semiconductor die attach use (next to its higher temperature and moisture resistance vs epoxies for instance). By using very fast “snap cure” profiles like most semiconductor companies do, bleeding can be controlled. Acrylate resin based products like CA 3556HF show less bleeding in general.
Bleeding can be also controlled by surface treatments, curing process and adding anti-bleed agents to the adhesives.
Sometimes if you take the relatively short pot life at 25C and high reactivity of QMI resins into account, next to its higher bleeding and higher resin cost base, we could suggest to focus on CA 3556HF and lower silver content ICP 8282 for specific applications. It is all application dependent and we are happy to help you choose.
