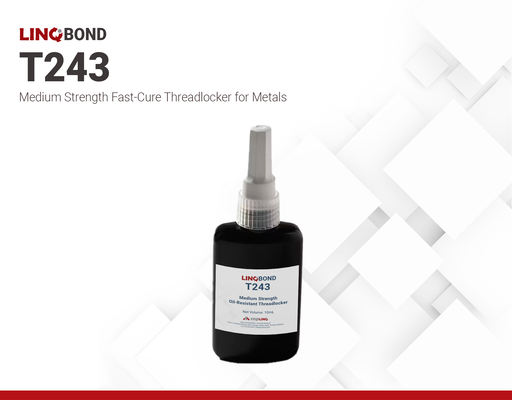

LINQBOND T243 | Fast-curing Medium Strength Threadlocker
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Improved oil resistance
- Non-migrating, thick forumation
- Good chemical resistance
Product Description
LINQBOND T243 is medium strength, general purpose, removable threadlocker with improved oil resistance for fasteners bettween 1/4" and 3/4" (6 to 20 mm) diameters.
LINQBOND T243 is a medium viscosity anaerobic adhesive with medium to high strength threadlocking adhesives for ferrous and non-ferrous threaded fasteners. Cured performance is consistent with other industrial fastener finishes such as black oxide and zinc plated steel. LINQBOND T243 has good solvent resistance against most industrial solvents. It can be used with most industrial lubricants, oils, and cleaners with minimal pre-cleaning. It works on most metal surfaces including oily steel, stainless steel, aluminum, and zinc-plated metals. It is also formulated to provide a consistent torque-tension relationship across the recommended torque range for grade 5 fasteners.
LINQBOND T243 is stronger and cures faster than LINQBOND T242.
T243
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 6 weeks
Shipping in 6 weeks
Shipping in 6 weeksPackaging
TDS, SDS & Technical Documents
- TDS_LINQBOND T243
- SDS_LINQBOND T243.docx
Technical Specifications
General Properties
Physical Properties
Additional Information
T243 Cured Properties
| Property | Value | Unit |
| Breakaway Torque Range on Steel (Steel 3/8-16 UNC, M10) |
13.5–16.8 | N⋅m |
| Breakaway Torque on Zinc-plated Surface (Steel 3/8-16 UNC, M10) |
9 | N⋅m |
| Prevail Torque Range on Steel Steel 3/8-16 UNC, M10) |
7.8–10 | N⋅m |
| Prevailing Torque on Zinc-plated Surface Steel 3/8-16 UNC, M10) |
5 | N⋅m |
| Application Temperature | –50 to 150 | °C |
| Solvent Resistance (60 °C) Water, oil, glycol, gasoline, transmission fluid ((Immersion Test) |
80–100 % retention of strength | – |
Directions for Use
- Apply adhesive to the male thread. The area does not need to be fully covered with the adhesive to achieve good locking torque.
- Assemble the male and female threads together. Tighten to the desired torque within 5 minutes of assembly.
Curing Information
- Fixture Time: 15-20 mins on zinc. 5-8 minutes on steel and black oxide finishes
- Full strength: 24 hours
Torque Strength Comparison
