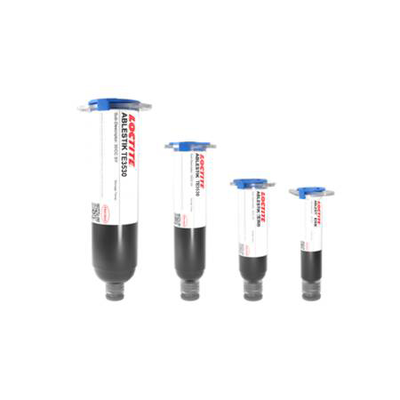

LOCTITE ABLESTIK TE3530
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- One component
- Thermally conductive
- Low viscosity
Product Description
LOCTITE ABLESTIK TE 3530 adhesive is designed for bonding heat dissipation components and can be applied by automatic syringe dispense. It cures at moderate to low temperatures allowing it to be used on heat sensitive materials.
LOCTITE ABLESTIK TE 3530 is a white, thermally conductive epoxy adhesive with low temperature cure that is typically used in sensor and die attach assemblies. Operating temperature is 150°C.
Cure Schedule
- 30 minutes @ 100°C or
- 15 minutes @ 120°C or
- 10 minutes @ 150°C
TE3530
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 37 days
Shipping in 12 weeks
Shipping in 25 daysPackaging
TDS, SDS & Technical Documents
- LOCTITE ABLESTIK TE3530
- MSDS 1293899 en_GB
- LOCTITE ABLESTIK TE 3530 known as Eccobond TE 3530
Technical Specifications
Thermal Properties
Physical Properties
