LOCTITE 3217
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- UV & Heat Cure
- Non Conductive
- Image sensor module assemblies
Product Description
LOCTITE 3217 dual cure adhesive is designed for use in the assembly of temperature sensitive electronic components. The maximum performance of this material is achieved by exposure to UV light of sufficient intensity, followed by thermal cure.
LOCTITE 3217 dual cure epoxy/acrylate (UV and heat) is an amber high viscosity material that is used for optical applications and the cavity fill of test IC's. It has good adhesion on glass and metals, based on customer experiences and it has been successfully used for Automotive applications.
UV Cure
- Medium pressure mercury lamp UV Wavelength, nm 220 to 260
- Light Intensity, mW/cm² 100
- UV Tack-Free Time, seconds 1
Heat Cure
- 30 minutes @ 60°C
- 25 minutes @ 70°C
- 20 minutes @ 80°C
3217
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 54 days
Shipping in 12 weeks
Shipping in 45 daysPackaging
TDS, SDS & Technical Documents
- LOCTITE 3217
- LOCTITE 3217
- LOCTITE 3217 known as Loctite 3217 50g Mus 50ML CN
Technical Specifications
General Properties
Thermal Properties
Physical Properties
Recently viewed products

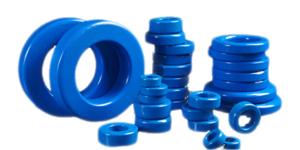

DK18-05 Blue Insulating Epoxy Coating Powder
