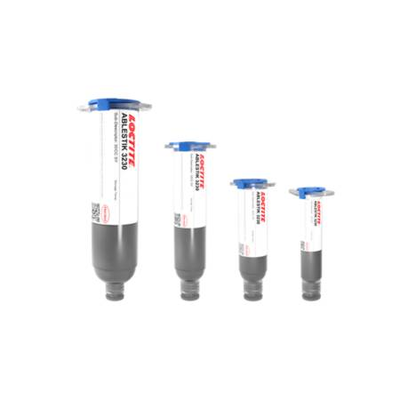

LOCTITE ABLESTIK 3230
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Improved JEDEC performance
- Fast cure
- Excellent adhesion to copper
Product Description
LOCTITE ABLESTIK 3230 electrically conductive, silver filled, die attach epoxy adhesive is designed for high reliability package applications . It can be used in a variety of package sizes.
LOCTITE ABLESTIK 3230 offers low stress and excellent adhesion to copper, combined with excellent JEDEC performance.
Cure Schedule
- 30 minute ramp to 175°C + 15 minutes @ 175°C
3230
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 30 days
Shipping in 12 weeks
Shipping in 35 daysPackaging
TDS, SDS & Technical Documents
- LOCTITE ABLESTIK 3230
- LOCTITE ABLESTIK 3230 known as Ablebond 3230 (36g), NL-MSDS_UT_NL
- LOCTITE ABLESTIK 3230 known as Ablebond 3230 (36g), EL-MSDS_UT_EL
