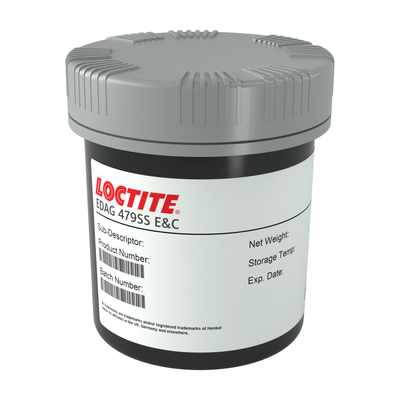

LOCTITE EDAG 479SS E&C
Harmonization Code : 32159090 | Printing ink, writing or drawing ink, and other inks, whether or not concentrated or solid, specifically for those classified as other within that category
Main features
- Good conductivity
- Screen printable
- Superior adhesion to polyester film
Product Description
LOCTITE EDAG 479SS E&C is a halogen-free, conductive silver ink with good flexibility. It is suitable for screen printing and often used for printing circuits, crossovers, EL-lamps and sensors on polyester foil.
LOCTITE EDAG 479SS E&C is compatible with Electrodag dielectric and carbon inks. Further it can be blended with the carbon ink LOCTITE EDAG 965SS E&C to adjust resistance levels and to make the material more economical.
Recommended drying schedule
- 15 minutes @ 93°C
479SS
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- LOCTITE-EDAG-479SS-EC-en_GL
- MSDS-EDAG479SS-EN
Technical Specifications
General Properties
Physical Properties
Additional Information
DIRECTIONS FOR USE
1. Do not expose wet ink to direct sunlight.
2. Do not freeze.
3. Keep product container tightly closed when not in use.
4. LOCTITE EDAG 479SS E&C is supplied ready for use. Should thinning become necessary, dilute 2% by weight with Carbitol acetate.
5. LOCTITE EDAG 479SS E&C should be thoroughly stirred prior to use. Avoid rapid stirring as this causes air entrapment.
