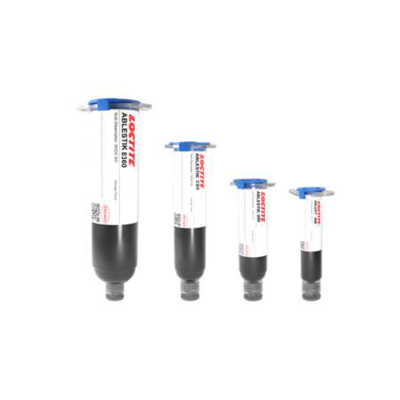

LOCTITE ABLESTIK 8360
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Excellent dispensability
- Miinimal resin bleed
- Minimal tailing and stringing
Product Description
LOCTITE ABLESTIK 8360 electrically conductive, epoxy die attach adhesive is designed for high reliability packaging applications. Its unique properties result in superior autoclave reliability test performance of the final assembled devices.
LOCTITE ABLESTIK 8360 offers excellent dispensability with minimal tailing and stringing. It has a low amount of condensable volatiles and high purity. LOCTITE ABLESTIK 8360 meets the requirements of MIL-STD-883, Method 5011
Cure Schedule
- 1 hour @ 175°C
- 5ºC per minute ramp to 175ºC + 1 hour @ 175ºC
- 2 hours @ 100°C + 30 minute ramp to 175°C + 1 hour @ 175ºC
8360
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 24 days
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- ABLESTIK 8360-EN
- 1200100_MSDS_UT_US_EN
