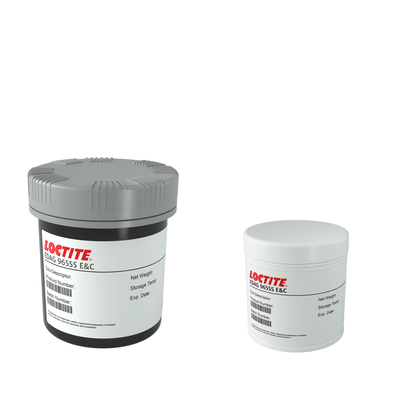

LOCTITE EDAG 965SS E&C
Harmonization Code : 32159090 | Printing ink, writing or drawing ink, and other inks, whether or not concentrated or solid, specifically for those classified as other within that category
Main features
- Conductive
- Screen printable
- Excellent adhesion to polyester
Product Description
LOCTITE EDAG 965SS E&C is designed for use in the production of low voltage circuitry on polyester to protect silver pads and tracks from chemical attack and silver migration. It consists of very finely divided graphite particles dispersed in a thermoplastic resin.
LOCTITE EDAG 965SS E&C is a screen printable thermoplastic that can operate continuously at 100°C. It is typically used as a protective coating on silver tracks and pads in membrane switches, keyboards, conductive jumpers in membrane switches and protection against electrostatic discharges (ESD).
Drying Schedule
- 30 minutes @ 90°C or
- 15 minutes @ 120°C
965SS
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 25 daysPackaging
TDS, SDS & Technical Documents
- EDAG 965SS EC-EN
- 1238736_MSDS_UT_US_EN
Technical Specifications
General Properties
Physical Properties
