ABchimie 4002UV UV Cure Resin
Harmonization Code : 3906909090 | Acrylic polymers in primary form Others>Others
Main features
- One-component
- Fast UV Curing
- Urethane Acrylate Coating
Product Description
ABChimie® 4002UV is a transparent resin conformal coating designed to provide mechanical and environmental protection to electronic components and assemblies. Its viscosity allows for thin build thickness (up to 1mm). ABChimie 4002UV is ideal for PCB protection.
ABChimie 4002UV is a urethane acrylate that exhibits excellent adhesion to various substrates, including flexible materials such as plastics. One of its advantages is that it cures rapidly under UV light, has zero VOCs, and can be applied to high-speed manufacturing processes to increase productivity. ABChimmie 4002UV is in full compliance with REACH and RoHS regulations.
Product Key Features
- Transparent UV-curing resin
- Thin film thickness
- Excellent adhesion to PCBs and plastics
- Fast UV cure for high volume production
- Solvent-free formulation (no VOCs)
- Silicone free
Applications
- Conformal coating for Printed circuit assemblies.
- Protection for plastic casings or covers.
- Protection for optically clear applications ex. lenses.
ABC-4002UV
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 weeksPackaging
TDS, SDS & Technical Documents
- ABchimie4002UV TDS
- ABchimie4002UV SDS
Technical Specifications
General Properties
Physical Properties
Additional Information
Frequently Asked Questions About ABChimie® 4002 UV
What are typical applications for ABChimie® 4002 UV?
ABChimie® 4002 UV is a UV-curable conformal coating designed to protect printed circuit board assemblies (PCBs) and components in demanding manufacturing environments, including:
- Automotive electronics (e.g., control units, sensors)
- Industrial automation (e.g., motor drives, PLCs)
- Consumer electronics (e.g., smart devices, wearables)
- Other high-reliability electronic assemblies
What is the recommended curing method for ABChimie® 4002 UV?
ABChimie® 4002 UV is UV-curable and should be cured with a mercury lamp. The minimum UVA dose is 1000 mJ/cm² for a 100 μm thickness. The mercury lamp-curable version is ABChimie® 4002 UV. Higher UVA doses do not negatively affect final properties.
Learn More About ABChimie® 4002 UV
ABChimie® 4002 UV is a proven solution for engineers seeking fast, reliable protection of electronic assemblies in demanding manufacturing environments. This UV-curable conformal coating delivers rapid curing, excellent electrical insulation, and strong environmental resistance—ideal for applications in automotive electronics, industrial automation, consumer electronics, and other high-reliability assemblies.
Main Advantages of ABChimie 4002 UV
ABChimie® 4002 UV cures rapidly under UV light, enabling integration into both batch and inline production. The resin forms a durable, high-performance layer that protects assemblies while supporting high-throughput manufacturing.
ABChimie® 4002 UV provides excellent mechanical protection. This hardness helps resist scratches, abrasion, and minor impacts, ensuring long-term stability of encapsulated components.
ABChimie® 4002 forms a clear, optically transparent protective layer that allows excellent visibility of underlying components. The coating maintains transparency after curing, supporting applications where visual inspection, light transmission, or component identification is required, while still providing durable protection.
ABChimie® 4002 UV bonds strongly to flexible substrates, including plastics and polymer-based PCBs. Its adhesion ensures reliable protection even on surfaces that bend or flex, ideal for wearables, flexible electronics, and lightweight assemblies.
How to Choose a Resin
Selecting the most suitable resin requires consideration of key factors:
- ✔ Norms & Compliance
- ✔ Environment / Exposure Conditions
- ✔ Repairability
- ✔ Electrical Performance
- ✔ Application Method
- ✔ Operating Temperature
Compliance You Can Trust ✅
ABChimie® 4002 UV meets stringent industry standards, ensuring reliability and regulatory adherence for OEMs and contract manufacturers:
- REACH Compliant
- RoHS 2011/65/EU Compliant
Curing Tip: ABChimie 4002 UV cures with UV rays. It is crucial to use the appropriate equipment, as well as the recommended settings, to achieve the best properties of the resin.
Ref. Leistung / ref power ln % over wavelength in nm
Ref. Leistung / ref power ln % over wavelength in nm
Key Curing Properties
Mercury
200-400 nm
1000 mJ/cm2
Coating Thickness
100 μm
Distance UV lamp - PCB
1 - 10 cm
Typical property values shown for reference only and should not be used as specifications.
Alternative to Mercury Lamp Curing of ABChimie 4002 UV
ABChimie 4002 UV is also available in the LED lamp version, which cures with an LED lamp.
ABChimie 4002 UV LED [Go to 4002 UV LED Product Page↗]
- Thixotropic Resin
- Fluorescent under UV light
- Excellent adhesion to flexible substrates
- Immediate curing with UV LED exposure
Best suited for: High-speed process looking to use LED light for curing
Recently viewed products
LINQCELL TFP600S | 600um Titanium Fiber Paper
- 0.60mm - 600um - 23.6mil
- 60 - 70% Porosity
- Electrode and Support structure

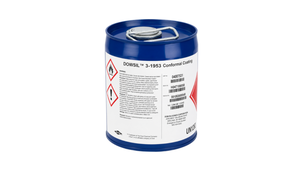

DOWSIL™ 3-1953 Conformal Coating
