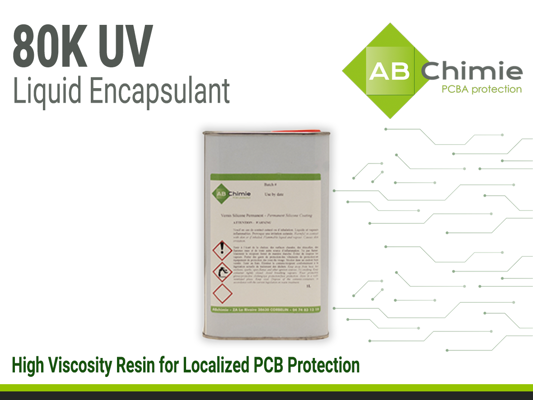

ABchimie 80K UV High Viscosity Resin
Harmonization Code : 3208.20.90 | Paints and varnishes that are dispersed or dissolved in a non aqueous medium
Main features
- Soft, shock‑absorbing resin
- Excellent adhesion
- One‑component formulation
Product Description
ABchimie 80K UV is a soft, one‑component UV‑curable resin designed to provide localized protection for electronic components. Its formulation delivers excellent adhesion across a wide variety of substrates— including PCBs and plastics, while offering strong mechanical reinforcement for high and sensitive components.
Capable of being applied in thick layers up to 5 mm, ABchimie 80K UV is ideal for applications requiring cushioning and vibration resistance. Its curing is instant under UV radiation, significantly improving processing speed and throughput. This resin contains no VOC, supporting cleaner and safer manufacturing environments.
Product Key Features
- Excellent adhesion to PCBs, plastics, and multiple substrates
- Provides mechanical reinforcement and vibration protection
- Designed for high‑speed, high‑productivity processes
- One‑component formulation (no mixing required)
- UL 94 V‑0 flammability resistance qualified (QMJU2‑E308681)
Applications
- Local protection of high components on PCBs
ABC-80KUV
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 weeksPackaging
TDS, SDS & Technical Documents
- ABchimie80K UV and ABchimie80K UV LED TDS
- ABchimie80K UV SDS
Technical Specifications
General Properties
Physical Properties
Mechanical Properties
Thermal Properties
Electrical Properties
Additional Information
Curing Profile
Recommended settings for the best properties of the resin ABchimie80K UV:
- Hg Lamp (Miniterm UV 250f Super, Aeroterm), 120W/cm
- Minimum UVA dose : 3000mJ/cm2 (to a 1mm-thickness)
The UVA dose is a minimum dose recommended. The intensity depends on the lamp power and the lampe distance.
UVA dose may be increased by a longer exposure time. A higher dose of UV or a overexposure will not damaged the product. However a lower UVA dose can have a detrimental effect on product final properties therefore it is very important to ensure minimum recommended UVA dose is met with your curing system.
