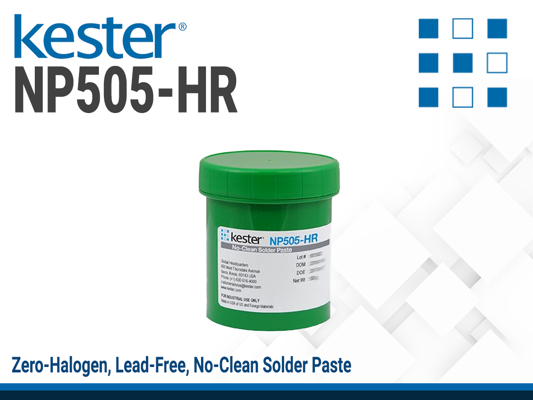

KESTER NP505-HR Solder Paste

KESTER NP505-HR is a zero-halogen, lead-free, no-clean solder paste formula developed specifically for high reliability applications. NP505-HR has been formulated to have reliable residues even in harsh damp cycling SIR testing. NP505-HR can handle a wide variety of printer variables, including print speed and long idle times with a wide range of temperatures and humidities. NP505-HR is fully capable of printing and reflowing 01005 components in air reflow with minimal graping behavior. Post-soldering, NP505-HR offers minimized defects, including head-in-pillow and QFN/BGA voiding. This paste is zero-halogen, exceeding the IPC definition for halogen-free. NP505-HR is classified as ROL0 per IPC J-STD-004B. NP505-HR is part of Kester’s high reliability product line and compatible with no-clean RF550 Rework Flux, NF372-TB Solder Flux and SELECT-10™ Selective Soldering Flux.

Product Key Features

• Exceeds IPC standards for halogen-free materials
• Designed to maintain reliability even under harsh damp cycling SIR (Surface Insulation Resistance) testing.
• Supports printing and reflowing of 01005 components with minimal graping in air reflow environments.
• Minimizes common soldering defects such as head-in-pillow & QFN/BGA voiding
• Classified as ROL0 per IPC J-STD-004B

Applications

• Solder printing

• Fully compatible with:

  • RF550 Rework Flux
  • NF372-TB Solder Flux
  • SELECT-10™ Selective Soldering Flux
