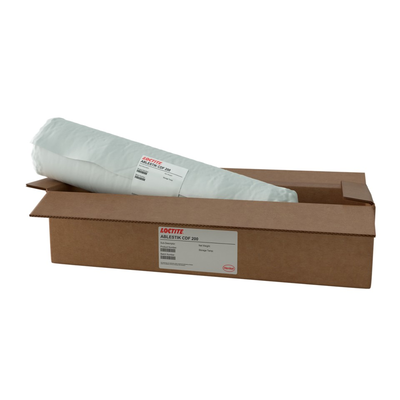

LOCTITE ABLESTIK CDF 200
Harmonization Code : 7115.90.00.00 | Other articles of precious metal or of metal clad with precious metal : Other
Main features
- High MSL reliability
- No resin bleed out
- 15um and 30um
Product Description
LOCTITE ABLESTIK CDF 200 highly filled, conductive die attach adhesive is designed to provide high thermal and electrical conductivity in the attachment of integrated circuits and components onto metallic leadframes. It can be used in a variety of die sizes ranging from 0.2mm x 0.2mm to 5mm x 5mm . This adhesive exhibits strong adhesion to various wafer metallizations and leadframe finishes
LOCTITE ABLESTIK CDF 200 offers high MSL reliability, controlled fillet size and does not exhibit resin bleed out. It has good wetting and low warpage on multiple die sizes and is recommended for thin wafer handling applications. It comes in 15 and 30um and is typically used for QFN, SOIC and SO package applications.
Cure Schedule
- 30 minute ramp from 25°C to 200°C, hold 60 minutes @ 200°C
- 30 minute ramp from 25°C to 175°C, hold 60 minutes @ 175°C
CDF200
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 26 days
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- ABLESTIK CDF 200-EN
- 000000000001717649_000000446493_MSDS_UT_US_EN
Technical Specifications
Thermal Properties
Additional Information
Films work like the “household double sided tape”. We can quickly appreciate the benefit as we used a dry resin for this, that results in a no mess assembly and very even BLT. Standard thickness of our films is 15um and 30um.
If your Z-space is really critical and has to have a very low BLT, Film is the way to go. Yes, there will be the additional process of laminating the film underneath you wafers but after that its all the same as traditional die attach process.
CDF 200P - Die attach film property comparison
