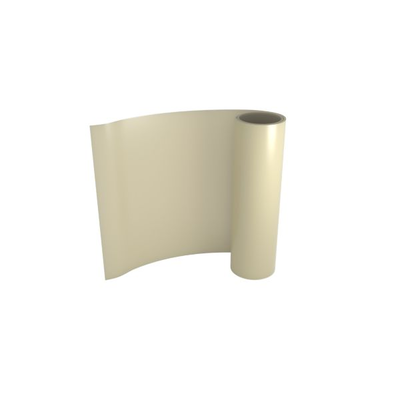

LOCTITE ABLESTIK ECF 564AHF
Harmonization Code : 3920.99.28.90 | Other plates, sheets, film, foil and strip, of plastics, non-cellular and not reinforced, laminated, supported or similarly combined with other materials ; Of other plastics ; Other; Other
Main features
- High flow version of 564A
- Excellent thermal conductivity
- Passes Mil 5011 and NASA outgassing
Product Description
LOCTITE ABLESTIK ECF 564AHF adhesive film is designed for use in hybrid packages where outgassing and ionic contamination must be kept to a minimum. This isotropically electrically conductive adhesive film has excellent thermal conductivity and comes with a glass fabric carrier.
LOCTITE ABLESTIK ECF 564AHF is the High flow version of ECF 564A and meets the NASA outgassing requirements and those of MIL-STD883C, Method 5011
Cure Schedule
- 2 hours @ 150°C
ECF564AHF
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 26 days
Shipping in 12 weeks
Shipping in 50 daysPackaging
TDS, SDS & Technical Documents
- ABLESTIK ECF 564AHF-EN
- 1202968_MSDS_UT_US_EN
Technical Specifications
Thermal Properties
Electrical Properties
