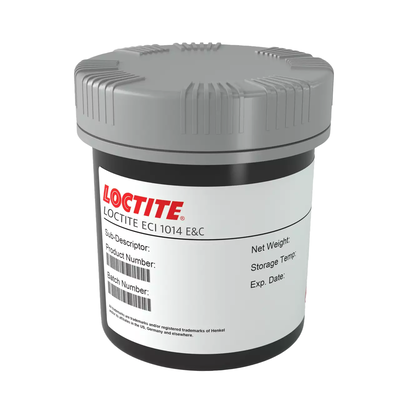

LOCTITE ECI 1014 E&C
Harmonization Code : 32159090 | Printing ink, writing or drawing ink, and other inks, whether or not concentrated or solid, specifically for those classified as other within that category
Main features
- Low temperature drying
- High conductivity
- Compatible for use with polycarbonate, polyester and polyurethane
Product Description
LOCTITE® ECI 1014 is a highly conductive, silver, high-elongation ink based on a thermoplastic polyurethane binder. This combined stretchability and high conductivity enables the development of medical wearables, smart textiles, automotive interiors, and flexible heater applications.
LOCTITE® ECI 1014 can be dried at temperatures as low as 80°C (176°F). It is suitable for screen printing or high-speed printing after dilution, and compatible with solvent-sensitive substrates such as polycarbonate, polyester or thermoplastic polyurethane.
Drying cycle
- 15 minutes @ 120°C
ECI1014
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 20 daysPackaging
TDS, SDS & Technical Documents
- LOCTITE-ECI-1014-EC-en_GL
- ECI1014E&C SDS
Technical Specifications
General Properties
Physical Properties
Additional Information
DIRECTIONS FOR USE
1. Surface Preparation
- Clean the surface thoroughly prior to application
2. Mixing/Dilution
- Mix thoroughly before use to ensure it is homogenous.
- Moderate heating of the ink, up to 40°C, can improve product homogeneity
- Should dilution be necessary use Dowanol DPM (CAS: 34590-94-8). Henkel recommends a maximum of 10 wt%. This should be accomplished by adding solvent at 0.5 wt% intervals by weight until desired viscosity and printability are achieved.
3. Application
- LOCTITE ECI 1014 E&C may be applied by screen printing method.
- Recommended screen and printing parameters are:
Emulsion Thickness, µm:
Solvent resistant 10 to 40
Squeegee Hardness 70 to 90
Screen Type, Polyester screen, cm 77-48
