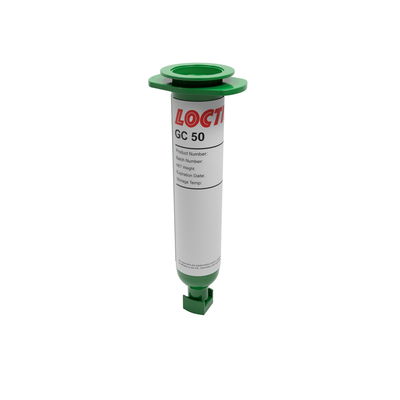

LOCTITE GC 50
Harmonization Code : 8001.20 | Unwrought tin: Tin alloys
Main features
- SAC 305 - No refrigeration
- Low voiding
- Fine nozzle Jet dispensing
Product Description
LOCTITE GC 50 solder paste is a halogen free, no-clean, Pb-free solder paste specially designed to provide enhanced stability when used in jet dispensing and other dispensing applications. This SAC 305 alloy comes in T4 and T5 powders, with T5 being having a fine particle size distribution, making it ideal for small components.
LOCTITE GC 50 provides long-term stability over a wide range of temperature conditions. It is stable in the ejector head for at least 1 week (up to 28°C/82°F) and remains suitable for use in time/pressure and auger pump dispensing systems. Its stable room temp sustainability, enables void-free packaging for improved process consistency and sustainability as well as excellent soldering performance in air or in nitrogen.
LOCTITE GC 50 has good resistance to graping in demanding reflow profiles and achieves and IPC Class III in voiding performance. Its post reflow residues readily removed with electronics industry solvents and it is compatible with Pb-free printing pastes in a solder additive process, eliminating the need for step-stencil or preforms.
GC50
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- LOCTITE GC 50
- LOCTITE GC 50 T5 SDS
Technical Specifications
Physical Properties
General Properties
Additional Information
Storage:
Optimal storage: 5 to 25°C (41 to 77°F)
Storage information may be indicated on the product container labelling. Material removed from containers may be contaminated during use. Do not return products to the original container.
Shelf Life:
Provided that LOCTITE GC 50 is stored in the original container, shelf life of 180 days at 5 to 25 °C (41 to 77°F) can be expected.
