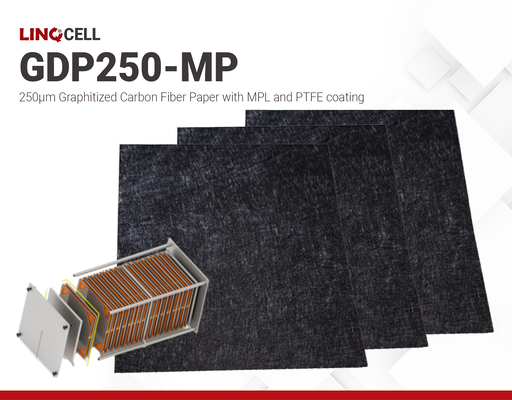

LINQCELL GDP250-MP | 250um Carbon Paper

LINQCELL GDP250-MP is a 250-µm thick graphitized carbon fiber paper made from high-quality polyacrylonitrile (PAN) fibers. The fibers undergo a wet-laying process to form a non-woven, fibrous, and porous structure, which is then carbonized and graphitized. This high-temperature graphitization (1600 °C) results in high electrical conductivity, high oxidation resistance, and excellent thermal stability, making LINQCELL GDP250-MP highly recommended as gas diffusion layers in fuel cells. It can also be used as gas diffusion substrates for carbon dioxide electrolyzers.

LINQCELL GDP250-MP has a microporous layer and PTFE coating, which provide hydrophobicity and increased surface area. The higher surface area maximizes catalyst utilization, which increases fuel cell efficiency. Meanwhile, the hydrophobic properties improve water removal and ensure stable operation by preventing flooding within the stack.

Key Features:

• 250-µm Thickness: Optimized for reduced stack volume and internal resistance.
• High-Temperature Graphitization (1600 °C): Provides excellent electrical conductivity, oxidation resistance, and thermal stability.
• Microporous Layer & PTFE Coating: Enhances hydrophobicity, increases surface area, and optimizes catalyst utilization.
• Improved Water Management: Hydrophobic properties prevent flooding and ensure stable operation by enhancing water removal.

Highly Recommended As:

• Gas diffusion layers of fuel cells, particularly proton exchange membrane fuel cells
• Gas diffusion substrates of carbon dioxide electrolyzer electrodes

LINQCELL GDP250-MP can be customized for specific needs and is available in roll form, with a maximum roll width of 40 cm, providing more flexibility for manufacturing and processing.
