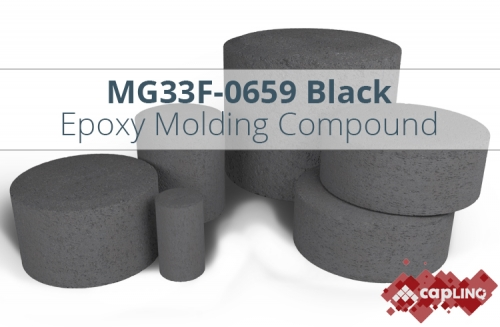

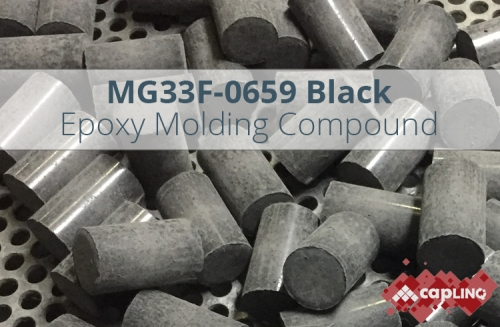

Hysol MG33F-0659 | Black Epoxy Mold Compound
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Automold Tantalum capacitors
- Low moisture absorption
- High moldability and fast cycle time
Product Description
Hysol MG33F-0659 is a black, semiconductor-grade epoxy molding compound (duroplast) designed for the encapsulation and protection of tantalum capacitors and surface mount resistors. Because of its fast cure, it is also very well suited for the manufacture of reed relays.
Hysol MG33F-0659 has a filler weight of 75% and is formulated with a short gel time to make it useful for the production of (Ta) Tantalum capacitors through automolding processes. It is an environmentally friendly "green" molding compound which contains no bromine, antimony or phosphorus flame retardant and meets UL 94 V-0 Flammability at 6.35mm thickness.
Typical applications:
- Tantalum capacitors
- Reed relays
- Aluminum housed resistors (Check why MG33F-0659 is suitable for this application)
Features:
- Fast cured formulation (Check the curing conditions)
- Long spiral flow to provide best moldability and wide molding latitude
- Great adhesion to copper substrates and CTE matched with Al
- High thermal stability (High Tg and low stress )
- Low mold shrinkage (0.16%) for large components molding
MG33F-0659
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- Hysol MG33F-0659
- SDS Hysol_MG 33F-0659_EU_EN_2023
- CAPLINQEpoxyMoldCompoundHandlingGuide1
Technical Specifications
General Properties
Electrical Properties
Thermal Properties
Chemical Properties
Curing Conditions
Physical Properties
Additional Information
MG33F-0659 Epoxy Mold Compound for Aluminum Housed Resistors
Hysol MG33F-0659 is formulated based on MG33-0690, which is a industrial proven product for aluminum housed resistors encapsulation. They have pretty similar properties. You could check the properties comparison table below. Two extra advantages of MG33F-0659 are:
- (1) MG33F-0659 contains green flame retardants and meet UL90 V-0 flammability @1/4 inches, which MG33-0690 does not have.
- (2) MG33F-0659 has lower mold shrinkage than MG33-0690.
In conclusion, Hysol MG33F-0659 is a good alternative to MG33-0690 for aluminum housed resistor application.
