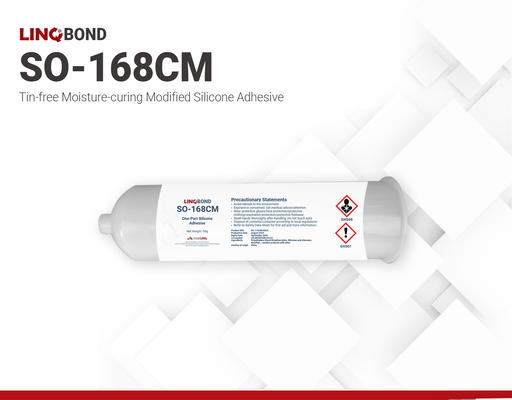

LINQBOND SO-168CM | Tin-free Moisture Curing Modified Silicone Adhesive

Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other

LINQBOND SO-168CM | Tin-free Moisture Curing Modified Silicone Adhesive

Main features

  • Tin-free
  • Fast cure at low temperature
  • High stability

Product Description

LINQBOND SO-168CM is a  organotin and dibutyltin (DBT) compound-free, moisture-curing, modified silicone adhesive, engineered to comply with stringent EU regulations. This advanced formulation utilizes alkoxy functional groups to facilitate ambient temperature curing via atmospheric moisture. SO-168CM has rapid curing profile and odorless features. This adhesive exhibits superior cohesive and adhesive strength compared to conventional silicone-based counterparts, making it optimally suited for demanding critical casting and bonding applications within the 3C (Computers, Communications, and Consumer Electronics) industry.

Product Key Features:

  • Moisture-Curing Mechanism: Cures via reaction with ambient humidity without the need for external heat or activators.
  • Fast Curing Speed: Makes production throughput more efficient and reduces cycle times.
  • Enhanced Adhesion Strength: Provides robust and reliable bonding for critical applications.
  • Optimized for 3C Industry: Specifically designed to meet the performance demands of electronics and consumer goods manufacturing.

Applications

  • Critical casting
  • Structural bonding in electornics
Product Family

SO-168CM

1. Select Package Type
2. Select Package Size
Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.

Product availability
US Shipping in 8 weeks
CA Shipping in 8 weeks
EU Shipping in 8 weeks
Packaging
Please select Package Type and Package Size before adding your product to your cart.

Technical Specifications

General Properties
Appearance Appearance
Liquid
Color Color
White
Specific Gravity Specific Gravity
1.65
Thermal Properties
Glass Transition Temperature (Tg) Glass Transition Temperature (Tg)
-40 °C
Temperature Range Temperature Range
-50 - 100 °C
Other Properties
RoHS Compliant RoHS Compliant
Yes
Physical Properties
Thixotropic index Thixotropic index
3
Viscosity Viscosity
150,000 - 300,000 mPa.s

Additional Information

Directions for Use

  1. Apply to a clean surface which should be free of dirt, grease or mold release. In many cases, a simple solvent wipe is sufficient.
  2. Pour or brush this product onto the substrates. It is not recommend to stir it onto the substrates to avoid formation of air bubbles. This product will be cured through air-drying but propeties depend on its thickness, curing temperatrue, and relative humidity.
  3. When casting in thicker components or devices, the resin might not be cured thoroughly at the bottom of the components or devices because the bottom resin is difficult to cure with the moisture. It is recommended to extend the cure time, so that the moisutre can be diffused from the top to the bottom. Another solution is to cast the components or devices twice. Cast the resin to half height of components and devices first. When the surface is almost dry and tacky, cast the resin for a second time.
  4. Use this product as soon as possible after opening the original package. When not in use, please replace the lid tightly and store in a cool and dry place.
  5. Cure time depends on part geometry, materials to be bonded, bondline thickness, and humidity. Cure schedule should be in accordance with actual specifications of production parts and equipment.
  6. Cured product is safe for human skin contact.
