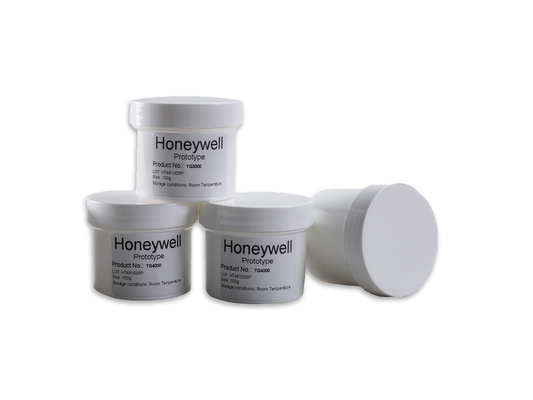

TG 3000 | Thermal Grease
Harmonization Code : 3824.99.96.99 | Prepared binders for foundry moulds or cores; chemical products and preparations of the chemical or allied industries (including those consisting of mixtures of natural products), not elsewhere specified or included : Other : Other: Other
Main features
- 0.009 Thermal Impedance
- 3.0 Thermal Conductivity
- 25μm BLT
Product Description
TG3000 Thermal Silicone Grease is a balanced thermal grease that offers good thermal properties (3.0 TC and 0.009 TI) while also exhibiting good electrical properties. It provides superior thermal performance with ease of use across a multitude of applications. Its low viscosity and excellent thixotropy make it fit for large–scale production with dispensing, screen printing and stencil printing.
TG3000 is used for applications with advanced power density requirements. It is designed to minimize thermal resistance at interfaces, and maintain excellent performance through reliability testing. TG3000 can reach a bond line thickness of 25 micron @35psi, 50oC. Its operating temperature range is -40oC to 150oC just like the entire Thermal grease product range.
TG3000
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 weeksPackaging
TDS, SDS & Technical Documents
- Honeywell TG3000 SDS
- TG2000I-TG5500TDS0914
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Physical Properties
