TMC-G373H | Transparent Epoxy Molding Compound
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Exceptional moldability with waxed formulation
- Low moisture absorption even at high temperature and high humidity conditions
- Excellent solder resistance for reliability
Product Description
OPTOLINQ TMC-G373H is an optically clear epoxy molding compound specifically designed for the encapsulation of optoelectronic devices. With its high spiral flow, it ensures precise and intricate molding. OPTOLINQ TMC-G373H also offers high moisture resistance, maintaining performance even in high temperature and humidity conditions.
This product stands out with its self-releasing technology and solder resistance for reliability, ensuring good quality and precision in optoelectronic device molding. Overall, OPTOLINQ TMC-G373H is well-suited for the encapsulation of packages that require optical transparency. TMC-G373H is available is custom pellet sizes. Contact us for more information.
Product Key Features
- Optimal spiral flow — fills mold completely and uniformly.
- Excellent moldability — capable of forming into complex shapes and geometry.
- High reliability — allows encapsulated component to function reliably under stress.
Packaging
TDS, SDS & Technical Documents
- TDS_OPTOLINQ TMC-G373H
- SDS_OPTOLINQ TMC-G373H
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Mechanical Properties
Chemical Properties
Curing Conditions
Physical Properties
Additional Information
Processing Instructions
- Before use, allow TMC-G373H to reach room temperature (20±5 °C, 40±15% RH) for a minimum of 24 hours for larger pellets and 12 hours for smaller ones, ensuring the bag remains unopened to prevent moisture contamination.
- For TMC-G373H in larger sizes, preheating can be performed using standard RF equipment. Preheating must be done slowly to achieve uniform temperature.
- Prior to molding with TMC-G373H or any new material, the mold should be cleaned thoroughly. To prepare the mold, the initial three shots should be cured for 5–10 minutes. After this initial preparation period, you can reduce the curing time to a level that provides sufficient hot hardness for effective release.
Storage and Handling

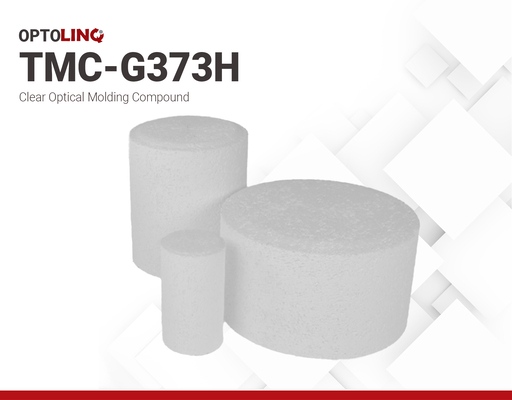

OPTOLINQ TMC-G373H is available in pressed pellets in a wide range of sizes to meet specific customer needs. To ensure product integrity, keep it away from oxidizing materials. For long-term storage, maintain a cold environment, ideally at –10 °C or lower. The shelf life under this condition is 6 months.
The technical information presented in this document is provided for reference only and does not constitute a guarantee of specific properties or performance. Actual results may vary depending on individual conditions and application methods. Users are strongly advised to perform their own testing and validation to determine suitability for their intended use and compliance with relevant regulations.
