SAC305 Solder Preforms on Tape & Reel
Harmonization Code : 8001.20 | Unwrought tin: Tin alloys
Main features
- SAC 305 on Tape & Reel
- Designed for Pick & Place
- Available for all sizes of solder spheres
Product Description

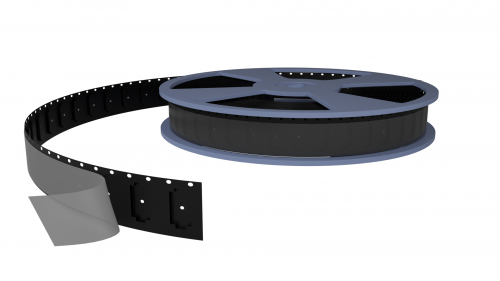

LINQALLOY SAC305 on Tape & Reel
Caplinq offers SAC305 solder spheres on a Tape and Reel. Arrangements range from 7" up to 12 and 13" reels. Our SAC305 solder sphere product offering includes lead-free and lead-tin solder spheres ranging in diameter from 60 to 890 micron.
When using solder spheres in integrated circuits (IC’s) the production process can require a very precise amount and placement of the solder material. IC’s are made in high volumes through an automated process and the different components that are part of the IC are placed using a pick and place machine. Examples of packaging techniques that use solder spheres in the production of IC’s are ball grid arrays (PBGA, CBGA, TBGA and µBGA) and flip chips (C4).
To be able to use our solder spheres in these high volume, automated processes we can package your solder spheres on tape and reel. Our tape and reel solder spheres can be used on almost all existing pick and place tape feeders, which means you can keep using your existing pick and place equipment to ensure your solder material is placed with the right speed and precision. Our tapes and reel packaging service is available for all solder sphere sizes.
TR-SAC305
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 6 weeks
Shipping in 6 weeks
Shipping in 6 weeksPackaging
TDS, SDS & Technical Documents
- SAC305 Preforms - Technical Data sheet
- CAPLINQ SAC305 Series EU SDS
- CAPLINQ Sn96.5Ag3.0CU0.5 (SAC305) REACH Compliance Statement
- LINQALLOY TR-SAC305 TDS v2.0
- LINQALLOY SAC305-PF SDS
Technical Specifications
General Properties
Other Properties
Additional Information
|
Preform |
Length(mm) |
Width(mm) |
Height(mm) |
Volume(mm3) |
|
0201 |
0.60 |
0.30 |
0.30 |
0.054 |
|
0402 |
1 |
0.50 |
0.50 |
0.250 |
|
0603 |
1.6 |
0.8 |
0.8 |
1.020 |
|
0805 |
2.03 |
1.27 |
0.76 |
1.960 |
|
1206 |
3.56 |
1.52 |
0.77 |
4.170 |
|
Packaging |
0201 |
0402 |
0603 |
0805 |
1206 |
|
7” reel |
20,000 |
10,000 |
4,000 |
3-4,000 |
3-4,000 |
|
12” reel |
- |
25,000 |
15,000 |
15,000 |
15,000 |
|
Dielectric |
Paper |
Paper |
Plastic |
Plastic |
Plastic |
