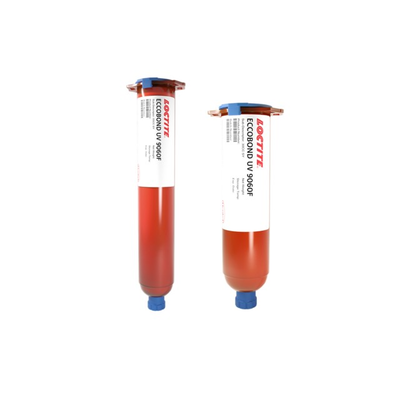

LOCTITE ECCOBOND UV9060F
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- UV & Moisture Cure
- Cures in shadowed areas
- Translucent light blue
Product Description
LOCTITE ECCOBOND UV 9060F no flow encapsulant is designed for local circuit board protection as a UV curing coating/encapsulant with secondary moisture cure in shadow areas. This product is fluorescent when viewed with ultraviolet (black) light.
LOCTITE ECCOBOND UV 9060F is a one component, fast curable translucent material that is easily dispensed without stringing. It is fluorescent under UV light and it typically used for assembly applications and the local protection of WLCSP and BGA on circuit boards.
UV9060F
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 55 days
Shipping in 12 weeks
Shipping in 40 daysPackaging
TDS, SDS & Technical Documents
- LOCTITE ECCOBOND UV 9060F
- LOCTITE ECCOBOND UV 9060F known as UV9060F 55CC EF
- LOCTITE ECCOBOND UV 9060F known as UV9060F 55CC EF EN
- LOCTITE ECCOBOND UV 9060F known as UV9060F 55CC EF NL
Technical Specifications
Thermal Properties
Physical Properties
Additional Information
UV Cure
Light Source and Condition:
Metal halide doped spectrum UV lamp
- Lamp Power, W/in 300
- Distance between lamp to substrate, inches 4
- Irradiance UVA, EIT puck radiometer, mW/cmÇ 566
- Recommended Dose, seconds 5 to 25
Moisture cure occurs at ambient temperature and humidity.
*Cures at least 0.25 inch under optimum conditions.
