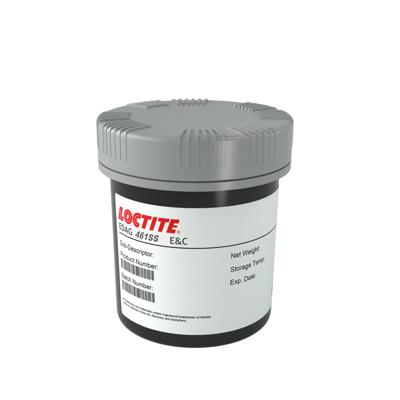

LOCTITE EDAG 461SS E&C
Harmonization Code : 32159090 | Printing ink, writing or drawing ink, and other inks, whether or not concentrated or solid, specifically for those classified as other within that category
Main features
- Conductive
- Screen printable
- Dries at low temperatures
Product Description
LOCTITE EDAG 461SS E&C conductive ink is designed for display applications on ITO film. It consists of very finely divided silver particles dispersed in a thermoplastic resin.
LOCTITE EDAG 461SS E&C is a screen printable and extremely flexible polyester resin with a butyl cellosolve acetate. It is typically used on ITO coated films, membrane switches, digitizers and flexible circuits with a maximum operating temperature of 149°C
Cure Schedule
- 30 minutes @ 71°C or
- 15 minutes @ 93°C or
- 5 minutes @ 121°C
461SS
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 35 daysPackaging
TDS, SDS & Technical Documents
- EDAG 461SS EC-EN
- 1224967_MSDS_UT_US_EN
Technical Specifications
General Properties
Physical Properties
