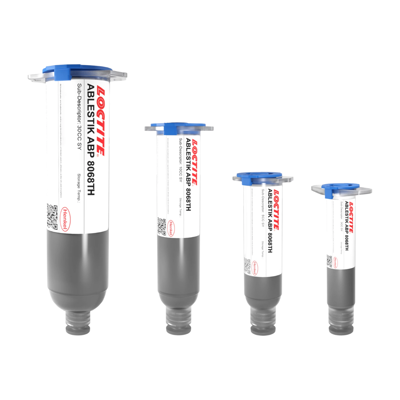

LOCTITE ABLESTIK ABP 8068TH

Recommended cure schedule

• For the die size <= 3 x 3 mm
  5°C/mins ramp from 25°C to 150°C, hold for 30-60 minutes
  5°C/mins ramp to 200°C, hold for 90-120 minutes, N2 oven

• For the die size > 3 x 3 mm
  5°C/mins ramp from 25°C to 150°C, hold for 30-90 minutes
  5°C/mins ramp to 200°C, hold for 90-120 minutes, N2 oven

Thawing

1. Allow container to reach room temperature before use.
2. After removing from the freezer, set the syringes to stand vertically while thawing.
3. Thaw times depend on the syringe size.
4. Consult handling guide for more information.
5. DO NOT open the container before contents reach 25°C temperature. Any moisture that collects on the thawed container should be removed prior to opening the container.
6. DO NOT re-freeze. Once thawed to 25°C, the adhesive should not be re-frozen.

Direction for use

1. Thawed material should immediately be placed on dispense equipment for use.
2. If the adhesive is transferred to a final dispensing reservoir, care must be exercised to avoid entrapment of contaminants and/or air into the adhesive.
3. Adhesive must be completely used within the product's recommended work life.
4. Alternate dispense amounts may be used depending on the application requirements.
5. Star or crossed shaped dispense patterns will yield fewer bondline voids than the matrix style of dispense pattern.
