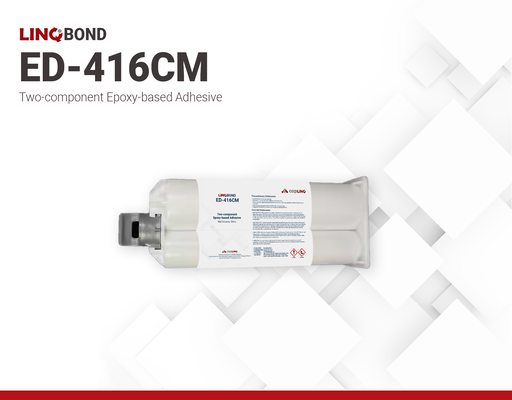

LINQBOND ED-416CM | Two-component Epoxy Adhesive
Harmonization Code : 3907.30.00.15 | Epoxide resin, halogen-free
Main features
- No surface treatment required
- Excellent chemical resistance
- Zero solvent formulation
Product Description
LINQBOND ED-416CM is a rapid-curing, two-component epoxy adhesive designed to deliver high strength, chemical resistance, and efficient processing for a wide range of bonding applications. Achieving handling strength within 20 minutes, LINQBOND ED-416CM significantly reduces working time, improving manufacturing efficiency.
LINQBOND ED-416CM exhibits strong adhesion to plastics, metals, and electronic components, making it ideal for structural bonding, sealing, and general-purpose applications. Its excellent resistance to chemicals, solvents, and moisture ensures reliable performance in demanding environments. The adhesive is easy to mix, RoHS 2011/65/EU compliant, and cures effectively at room temperature.
Applications
- Bonding and caulking of plastics, metals, and electronic assemblies
- General industrial adhesives for fast, reliable room-temperature bonding
- Sealing applications requiring chemical and solvent resistance
- High-speed assembly processes requiring short handling times
ED-416CM
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 weeks
Shipping in 8 weeks
Shipping in 8 weeksPackaging
TDS, SDS & Technical Documents
- TDS_LINQBOND ED-416CM
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Other Properties
Chemical Properties
Additional Information
Typical Curing Properties
| Property | Magnitude | Units |
| Mix rate (A:B) by weight | 1:1 | - |
| Surface Dry Time @25℃ | 5 - 10 | min |
| Full Cure Time @25℃ | 3 - 4 | days |
Uncured Properties
| Property | Part A | Part B | Unit |
| Appearance | Liquid | Liquid | — |
| Color | Milky | Light Yellow | — |
| Viscosity @25℃ | 100,000 - 200,000 | 17,000 - 32,000 | cP |
| Thiotropic Index | 3.25 | 3.7 - 4.1 | — |
| Specific Gravity | 1.16 | 1.11 | — |
Directions for Use
- The adhesive should be applied on clean surface that is free of dirt, grease, or mold release. In the case that it is coated with such, a simple solvent wipe will suffice.
- Mix thoroughly by weight (1:1 mix ratio) prior to use.
- After mixing the two parts, the adhesive should be used within its pot life. Large quantity mixing is not recommended for this product.
- For maximum bonding strength, apply the adhesive evenly to both surfaces that will be joined together.
- For handling information, refer to the attached Technical Data Sheet
