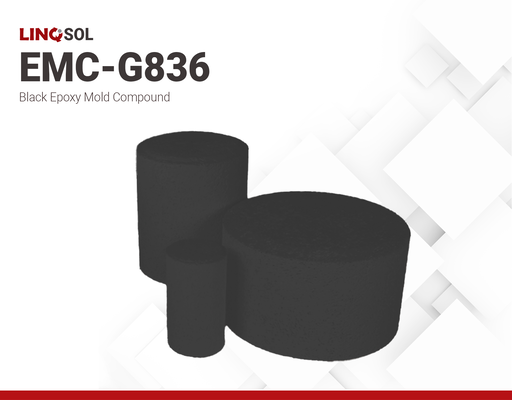

EMC-G836 | Epoxy Molding Compound
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- For QFN & QFP packages
- Meets JEDEC MSL 3 reliability requirements
- High spiral flow
Product Description
LINQSOL EMC-G836 is a halogen-free epoxy molding compound engineered for the precise encapsulation of a wide range of semiconductor packages, including Quad Flat No-Leads (QFN), Quad Flat Packages (QFP), and other thin, high-density packages like BGA TF cards (microSD). Its design focuses on delivering both superior performance and exceptional reliability.
Product Key Features
- Wide gel time (36s) — offers a broader processing window, ideal for QFN and QFP molding applications.
- High spiral flow (149cm) — meets demanding flowability requirements for intricate package designs.
- Low water absorption
- RoHS and REACH compliant
Applications
- Encapsulation of quad flat no-leads (QFN) & quad flat packages (QFP)
- Encapsulation of thin, high-density packages, including BGA TF cards (microSD)
EMC-G836
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- TDS_LINQSOL EMC-G836
Technical Specifications
General Properties
Physical Properties
Thermal Properties
