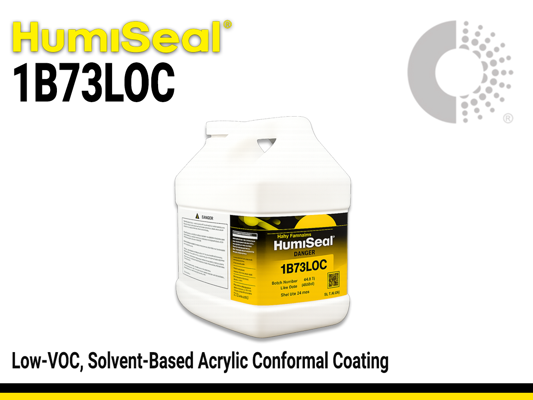

HumiSeal 1B73LOC Acrylic Conformal Coating
Harmonization Code : 3906909090 | Acrylic polymers in primary form Others>Others
Main features
- MIL‑I‑46058C qualified
- RoHS Directive 2011/65/EU compliant
- UL recognized (File Number E105698)
Product Description
HumiSeal 1B73LOC is a low‑VOC, solvent‑based acrylic conformal coating formulated to comply with most North American air‑quality regulations. 1B73LOC is designed for printed circuit assemblies and offers strong performance along with easy inspection—thanks to its UV fluorescence once cured. The coating is easily repairable and meets multiple industry standards, including MIL‑I‑46058C, IPC‑CC‑830, RoHS Directive 2011/65/EU, and UL File Number E105698.
Product Key Features
- Low VOC formulation
- MIL‑I‑46058C qualified
- IPC‑CC‑830 compliant
- RoHS Directive 2011/65/EU compliant
- UL recognized (File Number E105698)
Applications
- Printed circuit boards (PCBs) used in consumer, commercial, and industrial electronics
- Electronic assemblies in regions requiring low‑VOC compliant manufacturing processes
HS-1B73LOC
1. Select Package Size
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 6 weeks
Shipping in 6 weeksPackaging
Please select Package Size before adding your product to your cart.
TDS, SDS & Technical Documents
- 1B73LOC TDS
Technical Specifications
General Properties
Density (g) Density (g)
1.23 g/cm3 Film Thickness Film Thickness
25-75 µm Solids Solids
26 % Physical Properties
Viscosity Viscosity
445 mPa.s Thermal Properties
Glass Transition Temperature (Tg) Glass Transition Temperature (Tg)
42 °C Operating Temperature Operating Temperature
-65 - 125 °C UL 94 Rating UL 94 Rating
V-0 Electrical Properties
Breakdown Voltage Breakdown Voltage
6300 V Recently viewed products
