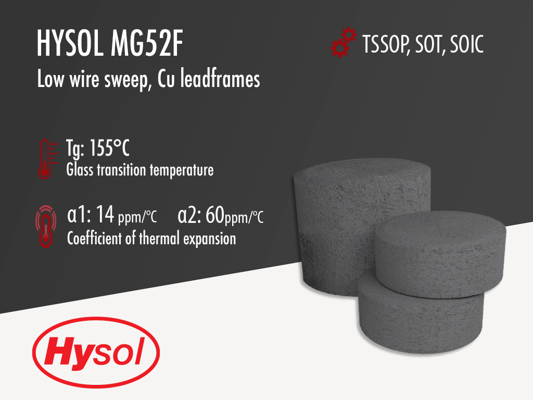

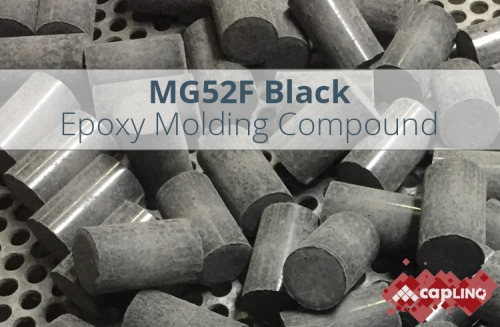

Hysol MG52F | Black Epoxy Mold Compound
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Designed for DL TSSOP packages
- Designed for copper (Cu) leadframes
- Excellent under biased humidity testing
Product Description
Hysol MG52F is a fast curing, high productivity molding compound, designed for high volume encapsulation of surface mount devices. MG52F is applicable for devices having chip dimensions up to 1 centimeter (400 mils) square. Various versions are available including MG52F-99B NXP which is designed to provide greatly improved moisture performance after preconditioning. It can be applied using both conventional and automold equipment.
Hysol MG52F was designed for and passed qualification testing on SOIC, PLCC, QFP, PDIP, 28, 48 and 56 pin TSSOP packages and has been used in production for more than 20 years. These packages had a copper leadframe with palladium plating. This material is designed to achieve JEDEC Level 1 requirements at 260°C reflow temperature on copper based, palladium-plated leadframes. Hysol MG52F meets UL 94 V-0 Flammability at 1/8 inch (3.18mm) thickness.
Hysol MG52F offers high adhesion to a wide range of substrates including Nickel and Palladium, low stress, a large operating window and molds with very low wire sweep.
MG52F
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- Hysol MG52F
- Hysol MG52F SDS
- CAPLINQEpoxyMoldCompoundHandlingGuide1
Technical Specifications
General Properties
Electrical Properties
Thermal Properties
Mechanical Properties
Chemical Properties
Curing Conditions
Physical Properties
Additional Information
Hysol MG52F has excellent reliability and HTRB data and has successfully passed the following reliability tests:
- Operating Life Static Test, 125° C, 5.5V 1000 Hours: Passed
- Biased Humidity, 85° C / 85% R H, 1000 Hours: Passed
- Autoclave, 121° C, 15 psi, 240 Hours: Passed
- Temperature Cycle Test, -65° C to 150° C, 1000 Cycles: Passed
- Storage Life Test, 150° C, 1000 Hours: Passed
- Thermal Shock Test, -55° C to 125° C, 500 Cycles: Passed
- Solder Heat, 260° C, 10 Sec, 1 Cycle: Passed
- Lead Pull to Destruction: Passed
- X-Ray: Passed
