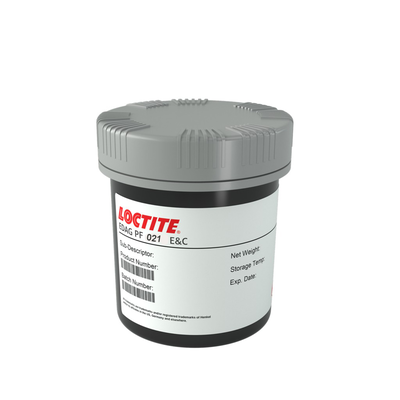

LOCTITE EDAG PF 021 E&C
Harmonization Code : 32159090 | Printing ink, writing or drawing ink, and other inks, whether or not concentrated or solid, specifically for those classified as other within that category
Main features
- Encapsulating Photopolymer
- Prevents Silver migration
- Fast UV Cure
Product Description
LOCTITE EDAG PF 021 E&C encapsulating photopolymer is designed to secure low profile surface mount devices (SMD) to rigid or flexible substrates. It is particularly effective for use as a physical and environmental protection of the mounted device.
LOCTITE EDAG PF 021 E&C is a UV curable, clear thermoplastic with a fast UV cure that prevent silver migration and physically protects SMD. It offers ease of process and dot dispensing with a max operating temperature of 204°C.
PF021
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 40 daysPackaging
TDS, SDS & Technical Documents
- LOCTITE EDAG PF 021
- MSDS 1263389 en_GB
Technical Specifications
Mechanical Properties
Physical Properties
Additional Information
Recommended UV Cure
Light Dose, Joule/cm2: 0.4 to 1.0
For thicknesses >2.0 mils, a longer wavelength bulb is required e.g. Fusion "D". UV measurements were made with an EIT radiometer.
How to use:
1. Mixing/Dilution
- Product is ready for use but should be mixed thoroughly using a plastic spatula. (Syringe-packed material needs no mixing).
- Mix smoothly from bottom of container , being careful not to whip air into the product.
2. Application
- LOCTITE EDAG PF 021 E&C should be applied in a glob over the entire surface if small devices, or along the outside leads of large devices.
- Its viscosity is designed to conform to the device and flow out over the substrate just prior to UV curing.
- Dot dispensing equipment should be selected based on the exact application, i.e., device size and production speed.
3. Cleanup
- Uncured resin may be cleaned with Isopropanol,
