PIT2SD | 2-mil Polyimide (Kapton) Tape with Silicone Adhesive | Double-Sided & Double Liner
Harmonization Code : 3919.90.80.99 | Polyacrylic plates / sheets / film / tape / strip, self-adhesive, in rolls
Main features
- 2 mil polyimide film
- Silicone adhesive
- >10000V breakdown voltage
Product Description
LINQTAPE™ PIT2SD-Series is a high performance, high-temperature resistant, pressure sensitive polyimide tape designed for both permanent and temporary bonding in many high temperature applications. These applications include but are not limited to semiconductor, smartcard, electronic, automotive and general manufacturing industries.
LINQTAPE™ PIT2SD-Series provides an excellent balance of electrical, mechanical, thermal, and chemical properties over a wide range of temperatures. It can be used in applications that may see temperatures up to 260°C (500°F).

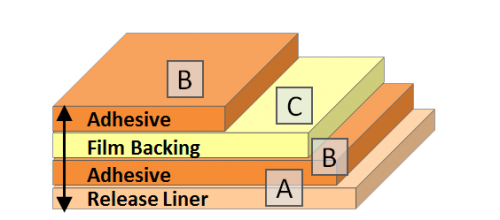

LINQTAPE™ PIT2SD-Series comes in 33 meter (36 yard) length rolls of varying widths. The base polyimide film (backing) thickness is 2 mil (50.8 ± 2µm) thick, has two silicone adhesive layers of 1.5 mil (38.1 µm) each and a 3mil (76.2 µm) PET release liner on both sides.
PIT2SD-Series
Shipping in 2 weeks
Shipping in 2 weeks
Shipping in 2 weeksPackaging
TDS, SDS & Technical Documents
- CAPLINQ PIT-SD SVHC (197)
- CAPLINQ PIT-SD RoHS
- LINQTAPE PITS EU MSDS
- LINQTAPE PIT2SD TDS
Technical Specifications
Thermal Properties
Other Properties
General Properties
Electrical Properties
Mechanical Properties
