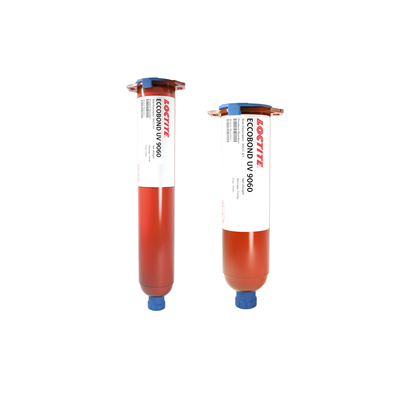

LOCTITE ECCOBOND UV9060
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- UV & Moisture Cure
- Cures in shadowed areas
- Not fluorescent
Product Description
LOCTITE ECCOBOND UV 9060 no flow acrylate encapsulant is designed for local circuit board protection as a UV curing coating/encapsulant with secondary moisture cure in shadow areas. This product will phase out for UV9060F which is the same but is also fluorescent when viewed with ultraviolet (black) light.
LOCTITE ECCOBOND UV 9060 is a one component, fast curable translucent material that is easily dispensed without stringing. It is typically used for assembly applications and the local protection of WLCSP and BGA on circuit boards.
UV9060
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- ECCOBOND UV 9060-EN
- 1524413_MSDS_UT_US_EN
Technical Specifications
Physical Properties
Additional Information
UV Cure
Light Source and Condition:
Metal halide doped spectrum UV lamp
- Lamp Power, W/in 300
- Distance between lamp to substrate, inches 4
- Irradiance UVA, EIT puck radiometer, mW/cmÇ 566
- Recommended Dose, seconds 5 to 25
Moisture cure occurs at ambient temperature and humidity.
*Cures at least 0.25 inch under optimum conditions.
