LOCTITE ABLESTIK 570K
Harmonization Code : 3920.99.28.90 | Other plates, sheets, film, foil and strip, of plastics, non-cellular and not reinforced, laminated, supported or similarly combined with other materials ; Of other plastics ; Other; Other
Main features
- Low outgassing
- High purity
- Hybrid substrate attach
Product Description

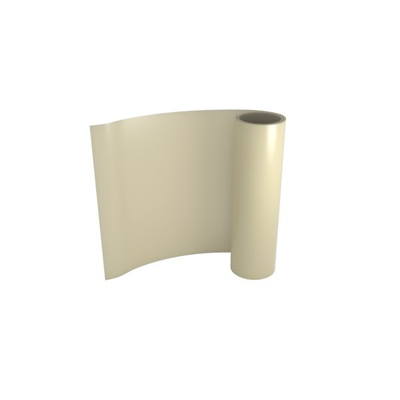

LOCTITE ABLESTIK 570K adhesive film is a high purity epoxy designed for hybrid substrate attach. This adhesive exhibits significantly better adhesion to gold surfaces, resulting in improved performance during constant acceleration testing compared with similar high purity materials.
LOCTITE ABLESTIK 570K is a low outgassing, brown epoxy assembly film that meets the requirements of MIL-STD-883C, Method 5011.
Cure Schedule
- 3 hours @ 150°C
- 1.5 hours @ 170°C
570K
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 30 days
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- ABLESTIK 570K-EN
- LOCTITE ABLESTIK 570K-1-006 known as Ablefilm 570K-1-006(5011),6x6 NL-MSDS_UT_NL
- LOCTITE ABLESTIK 570K-1-006 known as Ablefilm 570K-1-006(5011),6x6 NL-MSDS_UT_EN
- TDS LOCTITE ABLESTIK 570K issue 04-14
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Additional Information
LOCTITE ABLESTIK 570 will be discontinued in 2025., 570K is an improved version (higher thermal conductivity and lower CTE) and is the best alternative.
