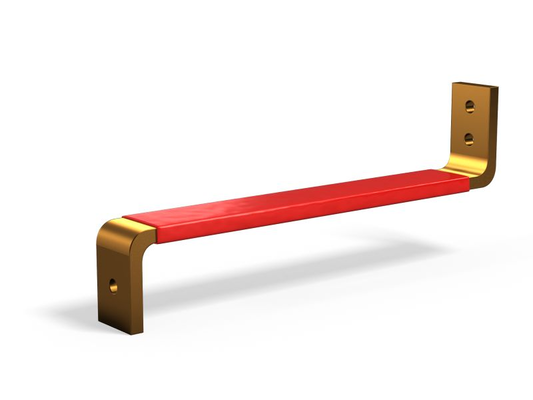

DK15-0907 | Red Insulating Epoxy Coating Powder

DK15-0907 Red is an epoxy-based, "One Powder Solution" coating powder developed for low and medium voltage (600V - 38,000V) bus bars. Used for over 20 years by major power distribution companies for low and medium-voltage bus bar applications, DK15-0907 provides a smooth surface appearance with high edge coverage. The fusion bonded coating is smooth, tough, and moisture-resistant for applications up to 38 KV. DK15-0907 is UL recognized for UL94-V0 rating and meets the UL746B Relative Thermal Index (RTI) of 130°C and is currently on test for an RTI at or above 150°C. Rapid and thick build reduces production cycle times. Particle size is optimized for the fluidized bed coating process.

Advantages of DK15-0907 for Busbar Coating

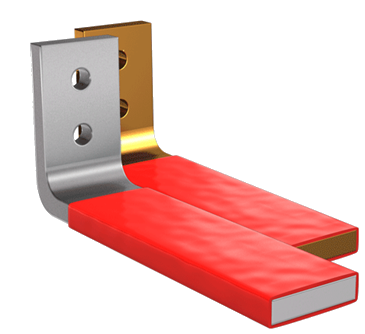

• Suitable for copper and aluminum bar
• Smooth, uniform coating build in excess of 200 mils (5 mm)
• Rapid build rates to reduce cycle times

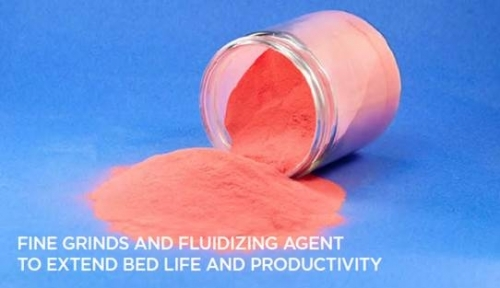

• Fine grind powder to replenish size distribution
• Fluidizing agent to promote uniform build
• Ongoing testing to optimize quality & productivity

Typical applications and uses of DK15-0907 include:

• Low Voltage (600V) Copper, Aluminum and Brass Busbars
• Medium Voltage (up to 38kV) Copper, Aluminum and Brass Busbars
• Switchgear Equipment for Power Distribution

This product is no longer available. Some alternatives for busbar coating powders are:

• BCP-1509 Medium to high voltage insulation
• BCP-1507 One powder solution for all
• BCP-1504 Low voltage busbars
• BCP-1000 Low cost spray coating
