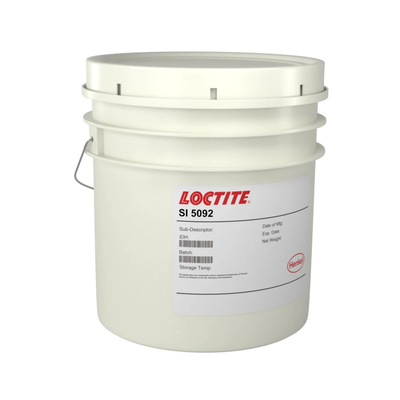

LOCTITE SI5092
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Yellow to Green liquid
- UV Cure
- Non corrosive
Product Description
LOCTITE® SI 5092™ is used for potting, coating and sealing of various automotive, electronic, military and industrial components. It is highly flexible and enhances the load bearing and shock absorbing characteristics of the bond area.
LOCTITE® SI 5092™ is a non corrosive, single component alkoxy silicone that requires no mixing and can cure with Ultraviolet light. Moisture is utilized as a secondary cure to cure shadowed areas. This self-leveling product offers uniform cavity fills.
SI5092
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 63 days
No longer available
Shipping in 110 daysPackaging
TDS, SDS & Technical Documents
- SI 5092-EN
- 158527_MSDS_UT_US_EN
Technical Specifications
Electrical Properties
Mechanical Properties
Chemical Properties
Additional Information
Typical curing performance
Normal processing conditions will include exposure to sufficient UV light irradiance to effectively cure the material. Surface and/or atmospheric moisture will promote the cure of material in shadowed regions. Although functional strength is developed almost instantly due to the UV curing nature of LOCTITE® SI 5092™, increased cure properties are developed during 72 hours at ambient conditions.
Surface Cure
When curing with sufficient UV light irradiance, exposed material will cure dry to the touch in seconds. Atmospheric moisture cures material not exposed to UV light.
Depth of Cure
Shadowed areas rely on surface and/or atmospheric moisture to effect cure. Depth of cure is limited to approximately 6 millimeters and will take at least 24 hours to develop. Rapid depth of cure can be attained with focused UV light.
