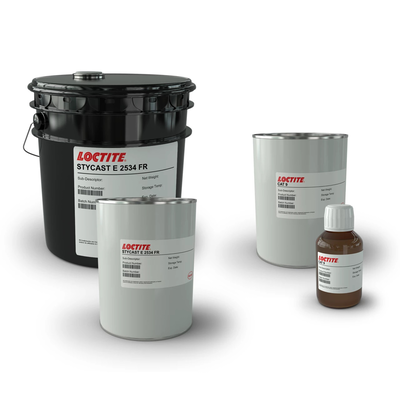

LOCTITE STYCAST E2534FR
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Flame retardant
- Halogen free
- High thermal conductivity
Product Description
LOCTITE STYCAST E 2534 FR epoxy potting compound complies with recent demands on environmentally friendly products and does not contain brominated flame retardants. It is a two-component epoxy that can be used in a 100:4 ratio with catalysts such as CAT 9. It can achieve a continuous operating temperature of -40 to 130°C and an intermittent of -40 to 150°C.
LOCTITE STYCAST E 2534 FR can be used with a variety of catalysts. For more information on mixed properties when used with other available catalysts, please contact your local technical service representative for assistance and recommendations.
Recommended Cure Schedule
- 16 to 24 hours @ 25°C or
- 2 hour @ 65°C
E2534FR
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 20 daysPackaging
TDS, SDS & Technical Documents
- STYCAST E 2534 FR CAT 9-EN
- 000000000001337086_000000373785_MSDS_UT_NL_NL
- LOCTITE CAT 24 LV
Technical Specifications
General Properties
Thermal Properties
Chemical Properties
Physical Properties
Additional Information
What is the difference in viscosity if we use different catalysts?
- CAT 9 TDS mentions only part A having 350.000 cPs, and no mixed viscosity (estimated around 33.000 cPs)
- CAT 24LV TDS mentions only the MIXED viscosity around 3.300 cPs, resulting in about 10 times lower viscosity vs CAT 9
