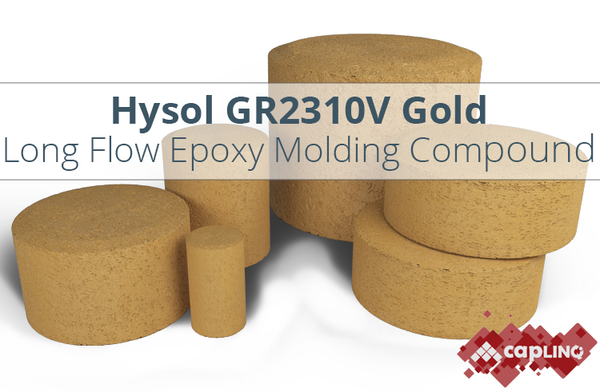

Hysol GR2310V | Gold Epoxy Mold Compound
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Long flow version of GR2310
- For MnO Tantalum Capacitors
- Gold (yellow) colored
Product Description
Hysol GR2310V is a long flow, long-gel time version of GR2310. It is gold (yellow) in color and is a semiconductor-grade epoxy molding compound or duroplast designed for the encapsulation and protection of Manganese Oxide (MnO2) tantalum capacitors and automotive sensor packages. Once molded and post-mold cured, this product provides optimium protection and reliability for these capacitor devices.
Hysol GR2310V is a laser markable, environmentally "green" product, meaning that doesn't contain any halogens including bromine, antimony or phosphorus flame retardants. MG33F-0520 and MG33F-0602 dominated the space for tantalum capacitors but used halogen-containing flame retardants. This next generation epoxy mold compound replaces these older generation products. It is designed to achieve JEDEC Level 1 requirements at 260°C reflow temperature. Its fast cure time ensures that it is compatible with the latest automold manufacturing equipment. Hysol GR2310V meets UL 94 V-0 Flammability at 1/4 inch (6.35mm) thickness.
GR2310V
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- Hysol GR2310V
- Hysol GR2310V SDS
- CAPLINQEpoxyMoldCompoundHandlingGuide1
Technical Specifications
General Properties
Electrical Properties
Mechanical Properties
Thermal Properties
Curing Conditions
Physical Properties
Additional Information
Tantalum capacitors are general purpose mature products and as such, the products used to mold them must be cost-competitive. Although the GR2310V has "only" been manufactured for 15 years or so, it has been optimised as to offer the lowest cost possible for a non halogen containing formulation.
